Frame Connectors ?

Discussion in 'General Maverick/Comet' started by John W, Oct 15, 2013.

  1. John W

    John W Member

    Joined:
    May 3, 2012
    Messages:
    156
    Likes Received:
    8
    Trophy Points:
    41
    Location:
    Walkerton Ontario Canada
    Vehicle:
    1932 Ford Roadster Hot Rod 1977 Maverick
    What is the most popular make of frame connectors that guys are using? Any forum member making them? Working on a 1977.

  2. Mavman72

    Mavman72 Gone backwards but lookin' forward

    Joined:
    Apr 24, 2007
    Messages:
    6,759
    Likes Received:
    272
    Trophy Points:
    273
    Location:
    Buffalo N.Y.
    Vehicle:
    1972 Maverick 2 door.Original V-8 3 spd std shift.Also a 72 one owner Sprint sporting a 351 Windsor
    Either alstons or chassis engineering connectors. There is a fella here on the forum...(toporanger) Who has a set in the works, along with a very nice custom belly bar and export brace that are available now.

  3. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,672
    Likes Received:
    73
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks

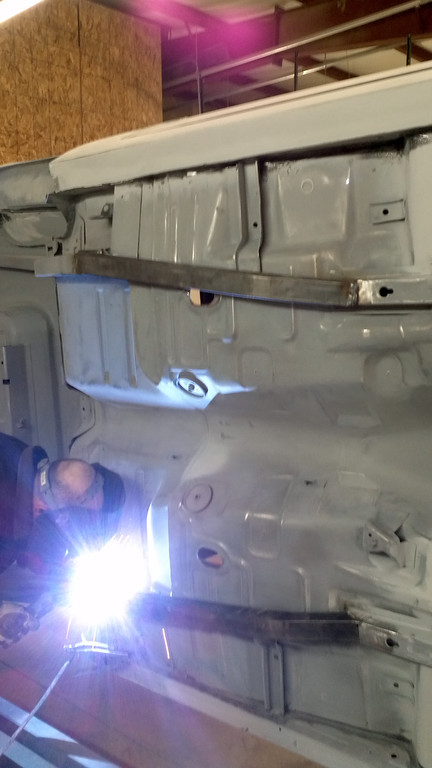

    A member that used to frequent here made me a set out of galvanized pipe. Just a couple of slight bends, and cut the ends at an angle.

    [​IMG]

  4. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,931
    Likes Received:
    214
    Trophy Points:
    347
    Location:
    Parts Unknown......
    Vehicle:
    3 Grabbers
    Sorry John, I had a busy weekend, and didn't get a chance to email you. I have the Chassis Engineering weld in, ones. They seem to fit well, but fit better, with some trimming.

  5. Cruzin Illusion

    Cruzin Illusion Enigma

    Joined:
    Feb 3, 2008
    Messages:
    1,133
    Likes Received:
    141
    Trophy Points:
    146
    Location:
    Commerce City, Colorado
    Vehicle:
    1972 Grabber

    Agreed:thumbs2:

  6. Lzoesch

    Lzoesch Levi Zoesch

    Joined:
    Jan 10, 2011
    Messages:
    1,100
    Likes Received:
    6
    Trophy Points:
    111
    Location:
    Spokane, WA
    Vehicle:
    1969 Maverick & 1972 Chevy El Camino SS
    I used Chassis Engineering Sub Frame Connectors.

    I am going a different route as far as mounting points.

    [​IMG]
    [​IMG]
    [​IMG]

    I am going to put a cross member in the back with a rear trans safety loop kinda like the picture below

    [​IMG]

    And with the picture above, I am going to build brackets for a lower link mounting spot.

    Then going to build "frame" extension for the Top link (doing a triangulated 3 link)

    Sorta like this pic below
    [​IMG]

    Last edited: Oct 15, 2013
  7. Lzoesch

    Lzoesch Levi Zoesch

    Joined:
    Jan 10, 2011
    Messages:
    1,100
    Likes Received:
    6
    Trophy Points:
    111
    Location:
    Spokane, WA
    Vehicle:
    1969 Maverick & 1972 Chevy El Camino SS
    and to make a side comment. I got them damn near identical mounting spot. I think I was off 1/16th of a inch both forward, and side to side (based off of rear frame rail). Was pretty proud, I measured once, and cut once lol...

  8. BigDog41364

    BigDog41364 Member

    Joined:
    May 10, 2012
    Messages:
    416
    Likes Received:
    83
    Trophy Points:
    133
    Garage:
    1
    Location:
    Kalamazoo Michigan
    Vehicle:
    1975 maverick
    Lzoesch What size square tube did you use?

  9. Lzoesch

    Lzoesch Levi Zoesch

    Joined:
    Jan 10, 2011
    Messages:
    1,100
    Likes Received:
    6
    Trophy Points:
    111
    Location:
    Spokane, WA
    Vehicle:
    1969 Maverick & 1972 Chevy El Camino SS
    Think it was 2x2 or 2 1/4 x 2 1/4...

    I should be home (currently in Louisianan) in a week or so and could give you the exact number...

  10. John W

    John W Member

    Joined:
    May 3, 2012
    Messages:
    156
    Likes Received:
    8
    Trophy Points:
    41
    Location:
    Walkerton Ontario Canada
    Vehicle:
    1932 Ford Roadster Hot Rod 1977 Maverick
    Great to receive feed back from guys who have "been there, done that" Thanks guys.

    John

  11. Cruzin Illusion

    Cruzin Illusion Enigma

    Joined:
    Feb 3, 2008
    Messages:
    1,133
    Likes Received:
    141
    Trophy Points:
    146
    Location:
    Commerce City, Colorado
    Vehicle:
    1972 Grabber
    Here is some inspiration:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  12. Lzoesch

    Lzoesch Levi Zoesch

    Joined:
    Jan 10, 2011
    Messages:
    1,100
    Likes Received:
    6
    Trophy Points:
    111
    Location:
    Spokane, WA
    Vehicle:
    1969 Maverick & 1972 Chevy El Camino SS
    nice... you have more pictures of your build?

  13. mercgt73

    mercgt73 Member

    Joined:
    Sep 6, 2003
    Messages:
    3,828
    Likes Received:
    352
    Trophy Points:
    223
    Location:
    Eastern Shore, Maryland
    Vehicle:
    1973 Comet GT (clone), 1974 Mustang II, 1980 Bobcat Wagon
  14. rotorr22

    rotorr22 Member

    Joined:
    Jun 30, 2008
    Messages:
    1,302
    Likes Received:
    259
    Trophy Points:
    211
    Location:
    Columbiana, Ohio
    Vehicle:
    2018 F150 XLT/5.0, 2014 Focus 5 spd manual,1974 Maverick Grabber, 1986 Thunderbird Elan 5.0/AOD
    While I'm assuming most people using sub frame connectors are building race cars or strong street strip cars, I've often wondered if adding them to a purely street driven car woulkd stiffen up up the car and reduce any groaning and/or creeking from unibody flex over rough road.

    Opinion/experience?

  15. John W

    John W Member

    Joined:
    May 3, 2012
    Messages:
    156
    Likes Received:
    8
    Trophy Points:
    41
    Location:
    Walkerton Ontario Canada
    Vehicle:
    1932 Ford Roadster Hot Rod 1977 Maverick
    "A picture is worth a 1000 words" -- Thank you -- Cruzin Illusion for sharing yours.
