mustang gas tank in 1970 maverick?

Discussion in 'Technical' started by 77maverick1, Aug 25, 2011.

  1. 77maverick1

    77maverick1 Member

    Joined:
    Nov 2, 2008
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    grayson, ky usa
    Vehicle:
    maverick 1970 & 77
    did i read on here somewhere that an older mustang 65-67 gas tank will fit almost perfect in a 1970 maverick, if set in there sideways? i know you can fab it to work correctly, but i am wondering about the sideways thing? i have an idea but not 100% sure about it yet.
    any input would be great!!!
  2. rthomas771

    rthomas771 Well-Known Member Supporting Member

    Joined:
    Jan 22, 2008
    Messages:
    6,367
    Media Gallery:
    13
    Albums:
    1
    Likes Received:
    42
    Trophy Points:
    137
    Location:
    McDonough, GA
    Vehicle:
    '74 Maverick 250 5-Speed. '60 Falcon V8 Toploader 9"
    I had both taks side by side and I don't see how it would come close to fitting.
  3. predfan2001

    predfan2001 David in Tn

    Joined:
    Mar 1, 2010
    Messages:
    2,347
    Media Gallery:
    15
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    97
    Location:
    Clarksville Tn
    Vehicle:
    70 Mav 75 Comet 64 Comet 68 Mustang
    I wouldn't think mounting it sideways would be a good idea. It's not a perfect fit sideways anyways so modification would be required. It would be just as easy to mount it the correct way.
    Last edited: Sep 2, 2011
  4. Joe Dirt

    Joe Dirt six poppin'

    Joined:
    Dec 16, 2008
    Messages:
    4,373
    Media Gallery:
    89
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    147
    Location:
    Mcdonald,tn
    Vehicle:
    1973 4 door
    I mounted one in my 74, I made a drop down flange and welded it in the trunk, I'm sure a 70 would be even easier. The good thing about the mustan tanks is the use the same external mounting demensions from 64.5-70 so that means you get the option of a 16,20 or 22 gallon fuel tanks and sending units are easy to get (even for efi) =)
    Last edited: Aug 1, 2012
  5. predfan2001

    predfan2001 David in Tn

    Joined:
    Mar 1, 2010
    Messages:
    2,347
    Media Gallery:
    15
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    97
    Location:
    Clarksville Tn
    Vehicle:
    70 Mav 75 Comet 64 Comet 68 Mustang
    The first pic here shows the approx. difference in the size of a Mustang tank in a 1970 Maverick (71 up trunk floor is different). The Mustang tank is wider and not as long. The second pic shows the cut I plan to make. Once removed, I'll trim several inches off, move it over and reweld it in. I'm gonna overlap the sheet metal and spot weld it with a mig sort of like how body panels are welded together from the factory. THen seal it and shoot it with splatter paint.

    Then I'll have to make 2 smaller filler panels on my metal break to fill the gaps. One last panel will have to be made to fill the gap between the tank and floor towards the back seat. I don't have a bead roller so I'm trying to find someone ro roll a few areas in that panel. When it's done I'm gonna make a vinyl cover to go over the tank area so hopefully it will have a stock appearance.

    The downside to this mod is that widening the trunk floor on the passenger side will eliminate room for a rear mounted muffler so you'll have to use an under floor muffler.

    Attached Files:

    Last edited: Sep 2, 2011
  6. maverick1970

    maverick1970 Well-Known Member Supporting Member

    Joined:
    Sep 9, 2003
    Messages:
    7,321
    Media Gallery:
    62
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    202
    Location:
    Missouri
    Vehicle:
    69 1/2, 70 Maverick and 71 Grabber
    Another thing to keep in mind is the location of the filler pipe. You may not be able to shift the Mustang tank to the right like that and may need to take some out of each side.
  7. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,733
    Media Gallery:
    34
    Albums:
    1
    Likes Received:
    54
    Trophy Points:
    307
    Location:
    London, Ontario
    Vehicle:
    3 Grabbers
    Such a nice trunk floor to cut up just for a gas tank :(
  8. predfan2001

    predfan2001 David in Tn

    Joined:
    Mar 1, 2010
    Messages:
    2,347
    Media Gallery:
    15
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    97
    Location:
    Clarksville Tn
    Vehicle:
    70 Mav 75 Comet 64 Comet 68 Mustang

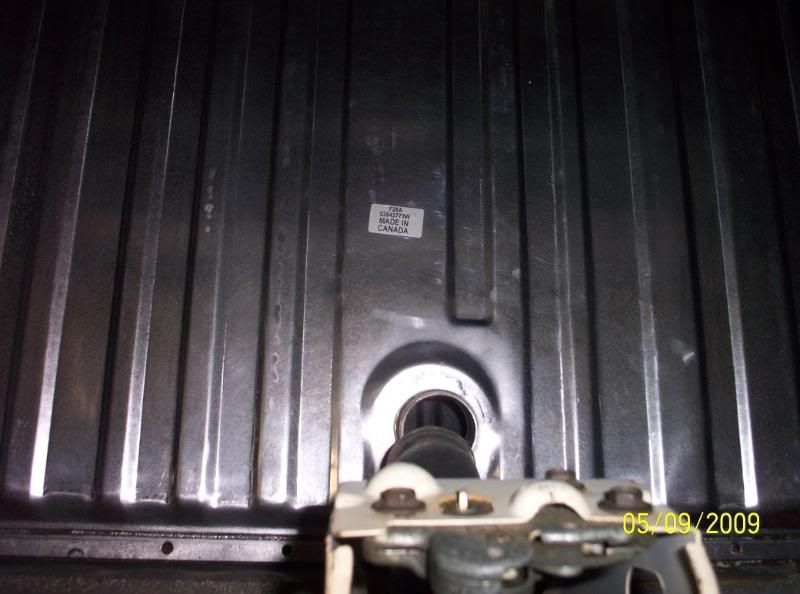

    Actually if you offset it to the right, the inlet is nearly aligned with the filler neck.

    [​IMG]
  9. Craig Selvey

    Craig Selvey Indiana State Rep - MCCI Supporting Member

    Joined:
    Mar 9, 2002
    Messages:
    14,682
    Media Gallery:
    431
    Albums:
    1
    Likes Received:
    56
    Trophy Points:
    413
    Location:
    Albany, Indiana
    Vehicle:
    1972 Maverick Grabber - Color: Orange Also, 1976 Ford Maverick 4-door, 1977 Mercury Comet 2-door. Daily driver: 2005 Ford Focus SE Station Wagon

    I agree. I have a 1970 tank if you are looking for one.
  10. predfan2001

    predfan2001 David in Tn

    Joined:
    Mar 1, 2010
    Messages:
    2,347
    Media Gallery:
    15
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    97
    Location:
    Clarksville Tn
    Vehicle:
    70 Mav 75 Comet 64 Comet 68 Mustang
    Those aren't pics of my car, they're another members car. Mine's nicer! lol

    But I've already got a new Mustang tank and I never want to face the whoas of hard to find 70 gas tanks again.
  11. Comet Fever

    Comet Fever Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    3,390
    Media Gallery:
    131
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    192
    Location:
    Texas
    Vehicle:
    1975 Mercury Comet
    I don't blame you, put in a new tank and get it over with. No telling how long a used tank would last.
  12. Comet Fever

    Comet Fever Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    3,390
    Media Gallery:
    131
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    192
    Location:
    Texas
    Vehicle:
    1975 Mercury Comet
    I'm about to put a new one in mine also but I believe my tank is still available new. (1975)
  13. Craig Selvey

    Craig Selvey Indiana State Rep - MCCI Supporting Member

    Joined:
    Mar 9, 2002
    Messages:
    14,682
    Media Gallery:
    431
    Albums:
    1
    Likes Received:
    56
    Trophy Points:
    413
    Location:
    Albany, Indiana
    Vehicle:
    1972 Maverick Grabber - Color: Orange Also, 1976 Ford Maverick 4-door, 1977 Mercury Comet 2-door. Daily driver: 2005 Ford Focus SE Station Wagon

    Yep....you can get a new one.
  14. predfan2001

    predfan2001 David in Tn

    Joined:
    Mar 1, 2010
    Messages:
    2,347
    Media Gallery:
    15
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    97
    Location:
    Clarksville Tn
    Vehicle:
    70 Mav 75 Comet 64 Comet 68 Mustang
    It might be wrong, but I compare mending an old leaky fuel tank to sticking your finger in a leaking dyke. I'm not got park a car in my garage that's had a rusted out tank even though it's been boiled out and lined. That's just my opinion. Mine will have a new tank, hoses and lines. Just to be on the safe side.
  15. Comet Fever

    Comet Fever Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    3,390
    Media Gallery:
    131
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    192
    Location:
    Texas
    Vehicle:
    1975 Mercury Comet
    I thought so. Remember reading about it. Thanks.
  16. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,733
    Media Gallery:
    34
    Albums:
    1
    Likes Received:
    54
    Trophy Points:
    307
    Location:
    London, Ontario
    Vehicle:
    3 Grabbers
    All I can add, was I bought a car that had the tank replaced with a new one 6 years earlier...and it rotted through, it was full of pin holes. That was a brand new reproduction tank.
    If you do replace it, buy a kit that lines the tank.
    If your tank has been repaired, and sealed, it should last a long time.
    I just find it sad to cut the trunk up to make the tank fit. I'd rather cut the tank to make it fit, of get a fuel cell.
  17. predfan2001

    predfan2001 David in Tn

    Joined:
    Mar 1, 2010
    Messages:
    2,347
    Media Gallery:
    15
    Albums:
    1
    Likes Received:
    4
    Trophy Points:
    97
    Location:
    Clarksville Tn
    Vehicle:
    70 Mav 75 Comet 64 Comet 68 Mustang
    But my new tank was made in Canada! ;)

    One thing about it. it this one does rot through in 6 years (doubt it though) I can order another that will bolt right in.
    Last edited: Sep 2, 2011
  18. Comet Fever

    Comet Fever Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    3,390
    Media Gallery:
    131
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    192
    Location:
    Texas
    Vehicle:
    1975 Mercury Comet
    I highly doubt it also. You are in Tennesee not Canada. LOL
  19. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,733
    Media Gallery:
    34
    Albums:
    1
    Likes Received:
    54
    Trophy Points:
    307
    Location:
    London, Ontario
    Vehicle:
    3 Grabbers
    If you look at any repop tank, they are almost all made in Canada.
    It rusted from the inside out.....plus it was in a garage.....LOL?
  20. Comet Fever

    Comet Fever Senior Member

    Joined:
    Feb 22, 2011
    Messages:
    3,390
    Media Gallery:
    131
    Albums:
    1
    Likes Received:
    1
    Trophy Points:
    192
    Location:
    Texas
    Vehicle:
    1975 Mercury Comet
    Well, I bet it's better than China. As far a the other statement, I really don't believe anything you post. You contradict yourself to much.

    Sorry!
