turbo comparison pictures

this is just for fun thought you guys might like it

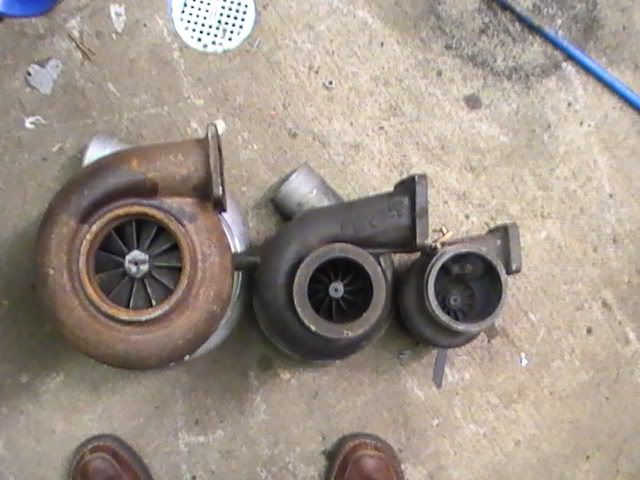

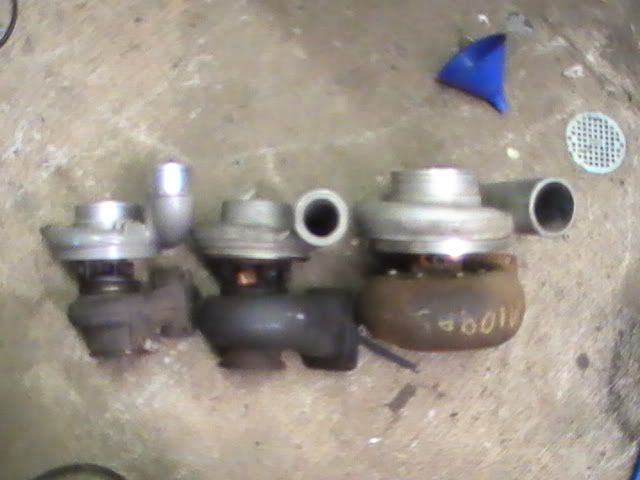

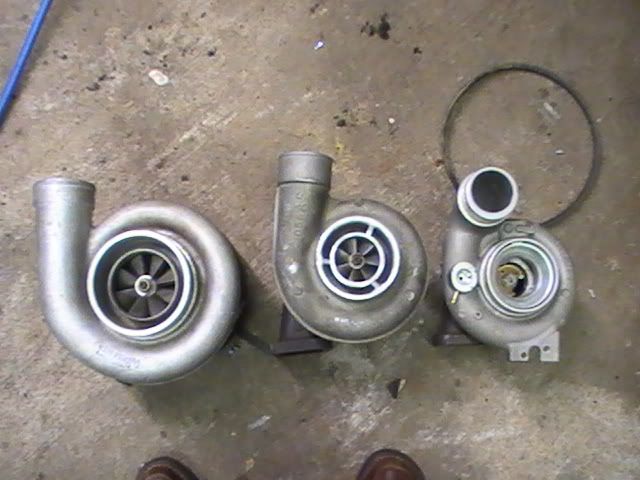

the smallest is a holset he351 off a 04-07 dodge cummins the same as my mavericks, the next is a mack truck and the big one is a airesearch off of a detroit diesel it has an ar ratio of .96 on the intake and 1.32 on the exh here are the measurements

air inlets 5 1/2 4 3/8 4
inlet wheel 3 1/2 2 7/16 2 1/4
compresser outlet 3 1/2 3 1/8 2 3/4
exh flange t6 t6 t3
exh wheel 4 3 2 1/4
exh outlet 5 1/8 4 3/8 4 3/8



here are the wheel sizes in mm's

intake 89mm 62mm 57mm
exh 101 mm 76mm 57mm
so if you go by the exh side i know the small one is good to like 450 horsepower so that means the mack would be about 600hp and the airesearch is good for 800hp



those hp numbers are way off now that i think about it



u should run all of them back to back on one motor

that will be fun



Is that turbo from a Series 60 ? It's HUGE!!!



I have no idea what the 2 bigger ones are off of
