Heck of a time getting springs compressed and into position.

Discussion in 'General Maverick/Comet' started by scooper77515, Mar 31, 2013.

  1. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,667
    Likes Received:
    63
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    What is the easiest spring compressor to work with?

    I have just spent 2 hours playing with one of these...

    [​IMG]

    and took two separate tries at it, and almost got it in, but I couldn't turn the spring to pop it into it correct orientation because of the big duckbill hitting everything.

    I have had luck using these on my old suspension...

    [​IMG]

    ...and might be willing to buy a set from JEGS/Summit for $30 or so.

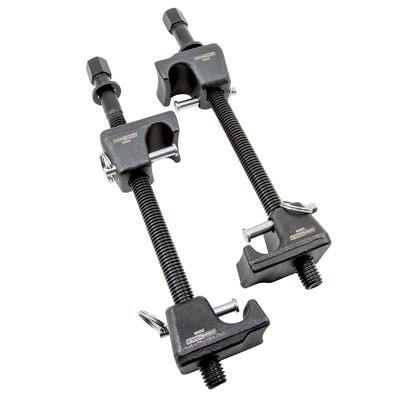

    But I have access to these...

    [​IMG]

    Would these work for me? Which would be easiest to work with?

  2. tody

    tody Member

    Joined:
    Apr 12, 2008
    Messages:
    1,813
    Likes Received:
    192
    Trophy Points:
    163
    Garage:
    1
    Location:
    cologne, germany
    Vehicle:
    72 comet gt, 67 club wagon, 65 mustang
  3. 71gold

    71gold Frank Cooper Supporting Member

    Joined:
    Apr 9, 2002
    Messages:
    25,624
    Likes Received:
    2,304
    Trophy Points:
    828
    Garage:
    1
    Location:
    MACON,GA.
    Vehicle:
    '73 Grabber
  4. bmcdaniel

    bmcdaniel Senile Member

    Joined:
    Jul 2, 2002
    Messages:
    6,375
    Likes Received:
    365
    Trophy Points:
    243
    Location:
    York. PA
    Vehicle:
    '70 Maverick Grabber
    The plates don't go on the very top and bottom, somewhere in the middle.

  5. Fish OutOfWater

    Fish OutOfWater Brian

    Joined:
    Jan 30, 2007
    Messages:
    899
    Likes Received:
    42
    Trophy Points:
    147
    Location:
    Long Island, NY
    Vehicle:
    72 Maverick Grabber, 71 Plymouth 'cuda440-6
    Just used them to change four springs in my sons jeep - Lifted Jeep. Still needed a second person, a three foot pry bar and a boot. But autozone lends them for free with a deposit so you cant go wrong trying.

  6. krelboyne

    krelboyne Remember

    Joined:
    Aug 1, 2006
    Messages:
    843
    Likes Received:
    61
    Trophy Points:
    100
    Location:
    Salem, Oregon
    I have used both styles of spring compressors, as posted above, by Scooper.

    The set with the single set of hooks and the duck bill plate thing, is the one I liked best.

    Once you have removed springs a couple of times, it is easier to orient the tool parts to get them re-installed.

    Visually orient the spring with the open coil, indexed to the spring saddle, prior to installing the compression tool. Make sure that the tool has the top plate installed on the open side so that you can pull it out.

    If you get lost, google the procedurer on U-tube. Literally everything has been filmed that you can think of.

  7. rthomas771

    rthomas771 Member

    Joined:
    Jan 22, 2008
    Messages:
    7,906
    Likes Received:
    795
    Trophy Points:
    483
    Garage:
    1
    Location:
    GA
    Vehicle:
    '74 Maverick 250 5-Speed.'60 Falcon V8 Toploader 9". '66 Falcon Sports Coupe, '63 Falcon Sports Coupe
    Have you tried it this way?

    [​IMG]

  8. Maverick Man

    Maverick Man The Original Maverick Man

    Joined:
    Mar 12, 2002
    Messages:
    3,559
    Likes Received:
    41
    Trophy Points:
    137
    Location:
    California
    Vehicle:
    Two 1973 LDO Mavericks (one 4 Drag one 4 driving like Mad on the roads :) ) also have a 75 6cyl Stock! Ok, well sort of Stock :P
    i've used the middle and the top ones before. however i feel the bottom ones work best with struts off the car and i think these would be hard to pull out of the shock tower.

    the middle one i think will be better for the maverick set up. used these many times!

    or better yet cut them more and they will go right in without a tool. mine do lol!

  9. tody

    tody Member

    Joined:
    Apr 12, 2008
    Messages:
    1,813
    Likes Received:
    192
    Trophy Points:
    163
    Garage:
    1
    Location:
    cologne, germany
    Vehicle:
    72 comet gt, 67 club wagon, 65 mustang
    just as daniel posted - the plates go in roughly 1 1/2 coils from each side.

    i was able to install the springs with both fender and coil cover in place. and they also give you a nice feeling of security the way they are designed...

  10. Jsarnold

    Jsarnold Senior Member

    Joined:
    Oct 29, 2008
    Messages:
    2,842
    Likes Received:
    3
    Trophy Points:
    102
    Location:
    Raleigh, North Carolina
    Vehicle:
    '72 Sprint
    I'm having trouble recalling the sequence now, but I used BOTH types to get mine done. Started compresson with one style (maybe the paired screw type on the outside of the spring) to get the single screw type mounted down lower on the spring to get enough compression to install the spring.

    Got both types from AutoZone on their loaner program.

  11. blugene

    blugene Senior member Supporting Member

    Joined:
    Jul 25, 2004
    Messages:
    10,739
    Likes Received:
    63
    Trophy Points:
    283
    Garage:
    1
    Location:
    Marietta, OK
    Vehicle:
    73 Comet GT, 72 Comet GT, 2008 "Comet" (our boxer)
    Is the lower contoll arm attached to the spindle? There have been times I had to pop the spring in at the bottom onto the arm and then lift the arm/bj into the spindle.

  12. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,667
    Likes Received:
    63
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    I took the lower control arm off the spindle, and tried to lift the spindle up to compress the spring, but with the engine out, I just lift up the entire side of the car.

    None of my welds are breaking, yet... :thumbs2:

  13. ford84stepside

    ford84stepside Lone Wolf

    Joined:
    Nov 25, 2004
    Messages:
    4,038
    Likes Received:
    13
    Trophy Points:
    132
    Location:
    Berry Alabama
    Vehicle:
    1947 Lincoln Zephyr Coupe
    I've only used the middle style. Just make sure they're not worn out. The set I used was old and worn, and you really had to be careful or they'd pop off. Gets tense and exciting easing the spring down into the tower, not knowing if it is gonna stay put or not!

  14. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,667
    Likes Received:
    63
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    I think working with compressed springs is scary anyway! I cut my last set down so they would fit right in without a compressor, and R&C says these "should" but I am having to compress from 13" down to about 8 or 9 inches to get them to go in.

    Maybe if engine was in, I could slap them in, jack up the spindle, and bolt it all up, but with engine out, front end is way too light.

    I might just wait until the engine is in and put them in.

    I really don't like handling compressed springs...

  15. blugene

    blugene Senior member Supporting Member

    Joined:
    Jul 25, 2004
    Messages:
    10,739
    Likes Received:
    63
    Trophy Points:
    283
    Garage:
    1
    Location:
    Marietta, OK
    Vehicle:
    73 Comet GT, 72 Comet GT, 2008 "Comet" (our boxer)
    I sweat alot when I am handling them lol..
