'71 - 8" rear wheel stud replacement?

Discussion in 'Technical' started by Powerband, Apr 20, 2017.

  1. Powerband

    Powerband Member

    Joined:
    Nov 6, 2014
    Messages:
    133
    Likes Received:
    17
    Trophy Points:
    31
    Location:
    NY's \H/
    Vehicle:
    ---- 1976 Comet --- 1974 Maverick- - '61 Comet T'Bolt Six ---- 'quite a few projects ...

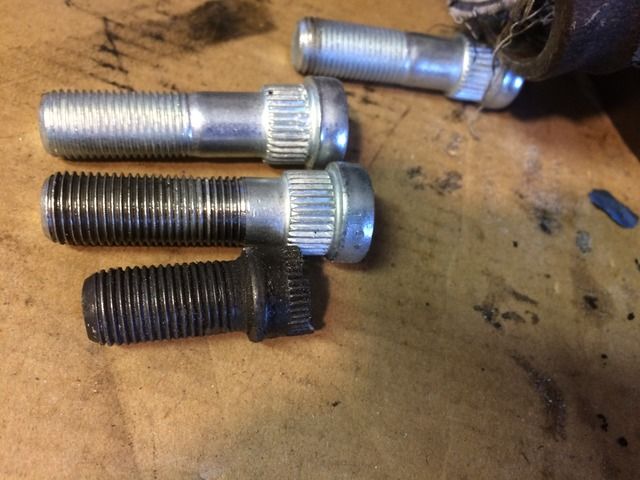

    71 Maverick with 8" - 4 Lug rear axle. I need to replace wheel studs, are they 'swedged' like the front drum studs are?. Can I push them out or do they need to be cut off?.

    thanks

    [​IMG] . [​IMG]

  2. baddad457

    baddad457 Member

    Joined:
    Feb 24, 2007
    Messages:
    5,603
    Likes Received:
    41
    Trophy Points:
    130
    Location:
    Opelousas La.
    They're pressed in same as the front studs.

  3. Powerband

    Powerband Member

    Joined:
    Nov 6, 2014
    Messages:
    133
    Likes Received:
    17
    Trophy Points:
    31
    Location:
    NY's \H/
    Vehicle:
    ---- 1976 Comet --- 1974 Maverick- - '61 Comet T'Bolt Six ---- 'quite a few projects ...
    afaik front studs are pressed in and swedged - relief area below threads is mushroomed . Proper removal requires swedge cutter or drilling out from back then pressing.

    hav efun

  4. yellow75

    yellow75 MaverickMike Supporting Member

    Joined:
    Jun 10, 2004
    Messages:
    3,793
    Likes Received:
    581
    Trophy Points:
    307
    Garage:
    2
    Location:
    Tillamook Oregon
    Vehicle:
    72 Maverick 64 Falcon 2 door wagon 1976 Maverick Stallion 2007 Shelby GT 500 2012 Ford F150 FX4
    Just stick a lug nut on them and smack them with a big hammer, they will come right out. Just finished doing on all four corners on my 72 five lug. I used impact to put them back in. As long as you get the right size knurl they will stay. Of course it is always best to have a shop press them out and in.

  5. baddad457

    baddad457 Member

    Joined:
    Feb 24, 2007
    Messages:
    5,603
    Likes Received:
    41
    Trophy Points:
    130
    Location:
    Opelousas La.
    Never seen an old Ford that required any of this. You whack em with a big hammer to knock em out. New ones go right back in first with a hammer on the back side, then pull em all the way in with the lug nuts til they're fully seated.

    71gold likes this.
  6. Powerband

    Powerband Member

    Joined:
    Nov 6, 2014
    Messages:
    133
    Likes Received:
    17
    Trophy Points:
    31
    Location:
    NY's \H/
    Vehicle:
    ---- 1976 Comet --- 1974 Maverick- - '61 Comet T'Bolt Six ---- 'quite a few projects ...
    Ford and Mopar typically 'SWAGED" front drum studs until Discs became universal. It was not recommended to remove without cutting swage or stud knurl can be loose. Replacement studs do not require swaging. I believe mfg's balanced hub and drum together and didn't want it removable.

    I drill back of stud removing head then push out front.


    http://www.fordmuscleforums.com/galaxie-pages/486992-removing-brake-drums-help-needed.html

    https://www.ford-trucks.com/forums/627336-separating-the-front-drum-from-hub.html

    [​IMG]


    [​IMG]

    have fun






    Last edited: Apr 22, 2017
  7. yellow75

    yellow75 MaverickMike Supporting Member

    Joined:
    Jun 10, 2004
    Messages:
    3,793
    Likes Received:
    581
    Trophy Points:
    307
    Garage:
    2
    Location:
    Tillamook Oregon
    Vehicle:
    72 Maverick 64 Falcon 2 door wagon 1976 Maverick Stallion 2007 Shelby GT 500 2012 Ford F150 FX4
    Yes the front are swagged like you say but you are asking about the rear and they are not. But even the front that little of an amount of swagging is no match for a hammer. Its your car do it anyway you want to do it

    71gold and baddad457 like this.
