    Vehicle:
    72 Comet

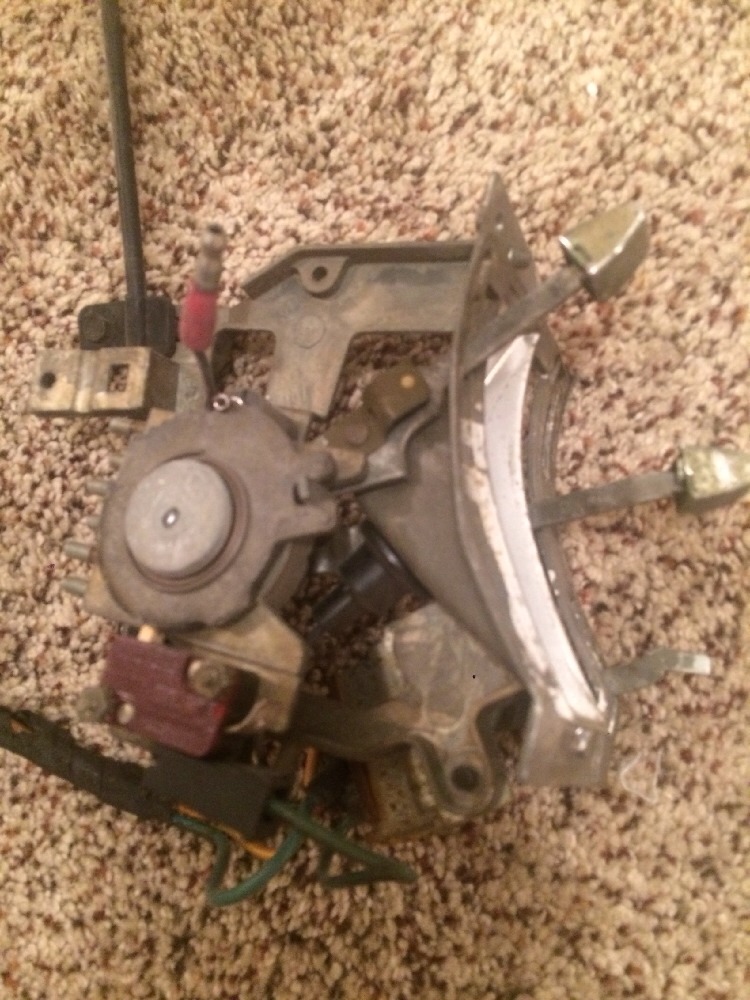

    Sorry guys, I did not want to have to ask this here, but I cannot find what I need using google. I am looking for photos of the air controls for a heat only car. The controls I have are for an AC car. Below is what I am looking for photos of. More specifically the side that has the mode control. I am going to have to modify the controls to work with an after market AC system and I thought perhaps controls from a heater only car may be easier to do what is needed.

    Thanks

    [​IMG]

  2. RMiller

    RMiller My name is Rick

    Joined:
    Dec 12, 2009
    Messages:
    2,717
    Likes Received:
    291
    Trophy Points:
    203
    Location:
    Kennewick, WA
    Vehicle:
    1971 Maverick Grabber
    I should have one readily accessible. I'll take pictures when I get home if they aren't already on here.

    jasonwthompson likes this.
  3. rthomas771

    rthomas771 Member Supporting Member

    Joined:
    Jan 22, 2008
    Messages:
    7,721
    Likes Received:
    633
    Trophy Points:
    358
    Garage:
    1
    Location:
    GA
    Vehicle:
    '74 Maverick 250 5-Speed.'60 Falcon V8 Toploader 9". '66 Falcon Sports Coupe, '63 Falcon Sports Coupe
    Heater controller on left...A/C controller on right. Notice arm for heater cable and no arm on AC. Also no vacuum going to heater controller and also different fan switch. Heater switch uses 4 wires the AC switch uses 5 wires.


  4. RMiller

    RMiller My name is Rick

    Joined:
    Dec 12, 2009
    Messages:
    2,717
    Likes Received:
    291
    Trophy Points:
    203
    Location:
    Kennewick, WA
    Vehicle:
    1971 Maverick Grabber
    Sweet! Thank you, saves me from digging around in the oven, AKA garage.

    jasonwthompson likes this.
  5. rthomas771

    rthomas771 Member Supporting Member

    Joined:
    Jan 22, 2008
    Messages:
    7,721
    Likes Received:
    633
    Trophy Points:
    358
    Garage:
    1
    Location:
    GA
    Vehicle:
    '74 Maverick 250 5-Speed.'60 Falcon V8 Toploader 9". '66 Falcon Sports Coupe, '63 Falcon Sports Coupe
    Also be aware they are two styles controllers, with FAN light and without FAN light.

    D2DZ-18531.jpg D5DZ-18531.jpg

    jasonwthompson likes this.
  6. jasonwthompson

    jasonwthompson Member

    Joined:
    Mar 25, 2012
    Messages:
    723
    Likes Received:
    113
    Trophy Points:
    116
    Location:
    Carrollton TX
    Vehicle:
    72 Comet
    Thanks Jeff, that is exactly what I was looking and hoping for. So, now it looks like I need a heater control switch with the FAN light. Anyone have one available?

    Last edited: Jul 12, 2018
  7. Mavaholic

    Mavaholic Growing older but not up!

    Joined:
    Mar 9, 2002
    Messages:
    14,927
    Likes Received:
    124
    Trophy Points:
    258
    Location:
    Live Oak, FL
    Vehicle:
    Original 72 Sprint Owner, 71 Comet GT, 57 Ranchwagon, 57 4 dr Wagon
    That vacuum switch is the old all metal design only found in the 70 model. Hard to find and way more durable than the plastic ones. Can be used in place of the plastic ones but vacuum connector needs to be flipped 180ยบ.

    jasonwthompson likes this.
  8. jasonwthompson

    jasonwthompson Member

    Joined:
    Mar 25, 2012
    Messages:
    723
    Likes Received:
    113
    Trophy Points:
    116
    Location:
    Carrollton TX
    Vehicle:
    72 Comet
    What I want is the heater only one without the vacuum switch.
