can someone educate me on heater controls?

Discussion in 'Technical' started by tody, Sep 15, 2012.

  1. tody

    tody Member Supporting Member

    Joined:
    Apr 12, 2008
    Messages:
    1,740
    Likes Received:
    161
    Trophy Points:
    163
    Garage:
    1
    Location:
    cologne, germany
    Vehicle:
    72 comet gt, 67 club wagon, 65 mustang
    72 comet, no airconditioning, no rear defogger

    are there differences in the heater controls as far as illumination is concerned?

    i have a control bracket with only one bulb and a NOS control panel which looks like the "FAN" can be illuminated, too. it won't fit the bracket, and my old panel plate looks different...

    will try to get pictures later, but maybe someone can chime in to tell me which is the right heater control for my plate!

  2. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,917
    Likes Received:
    184
    Trophy Points:
    347
    Location:
    Parts Unknown......
    Vehicle:
    3 Grabbers
    Is the "fan" on the top, or the bottom?

  3. Craig Selvey

    Craig Selvey Indiana State Rep - MCCI

    Joined:
    Mar 9, 2002
    Messages:
    17,378
    Likes Received:
    819
    Trophy Points:
    753
    Location:
    Albany, Indiana
    Vehicle:
    1972 Maverick Grabber - Color: Orange Also, 1976 Ford Maverick 4-door, 1977 Mercury Comet 2-door. Daily driver: 2002 Ford Focus SE Station Wagon
    All heater bezles will fit all heater controls. The difference is whether the word FAN is illuminated or not.

  4. tody

    tody Member Supporting Member

    Joined:
    Apr 12, 2008
    Messages:
    1,740
    Likes Received:
    161
    Trophy Points:
    163
    Garage:
    1
    Location:
    cologne, germany
    Vehicle:
    72 comet gt, 67 club wagon, 65 mustang
    took some pictures and dug trough the ford master parts catalog. my car was built 11/71 and the change in heater controls was 7/15/72:

    heater without rear defogger, control unit:
    early: D0DZ 18531-A
    late: D2DZ 18531-A

    corresponding heater bezel has even more differences, part numbers are for black:
    before 12/20/71: D0DZ 18A651-E
    12/20/71 - 7/15/72: D2DZ 18A651-E
    after 7/15/72: D2DZ 18A651-Y

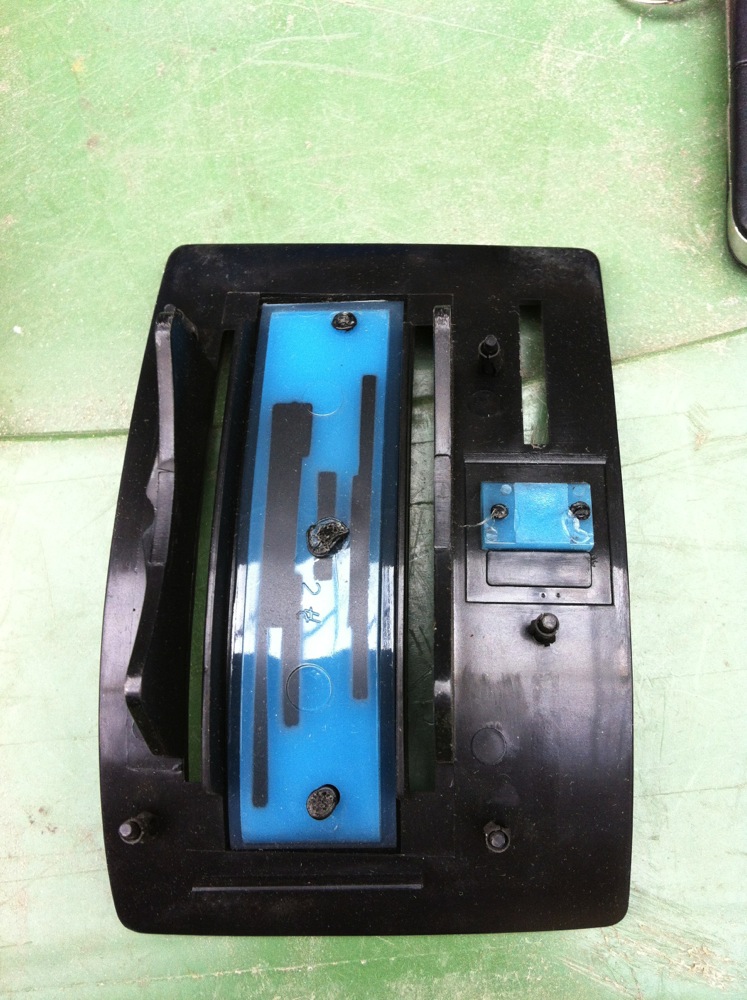

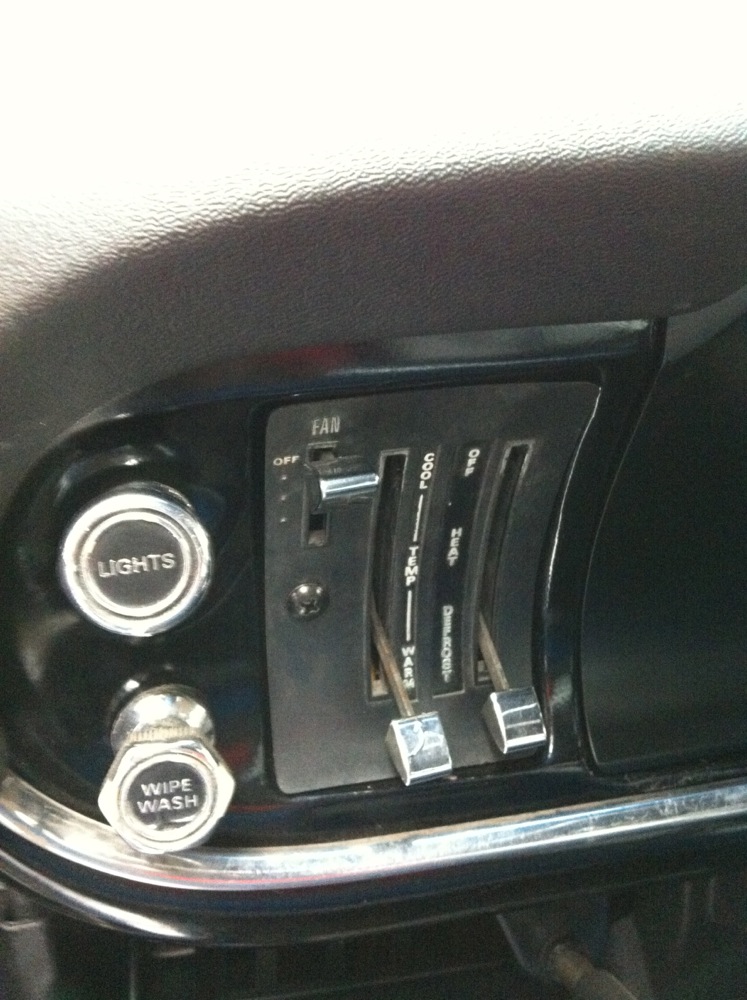

    thus, my car has the early bezel and control which look like this, fan written on top:
    [​IMG]
    [​IMG]

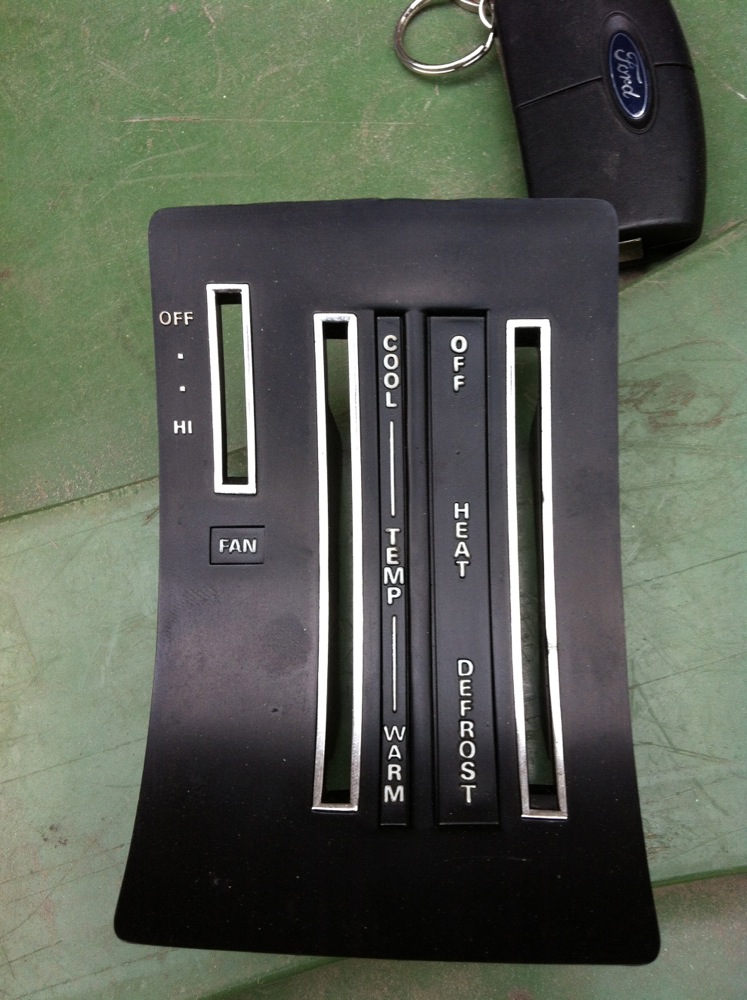

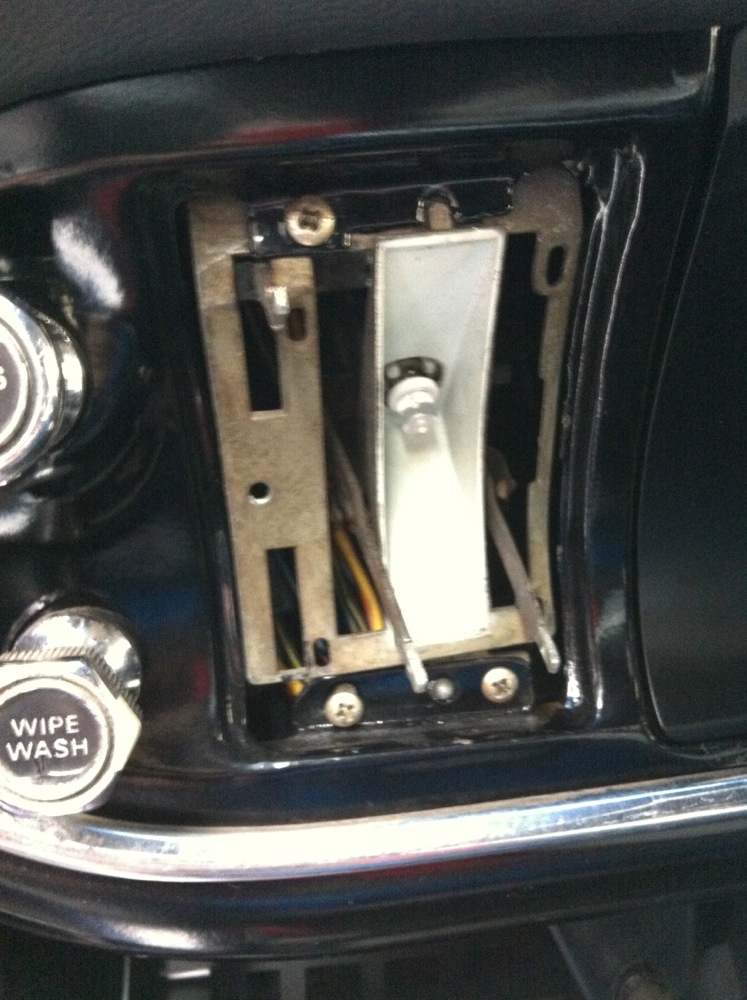

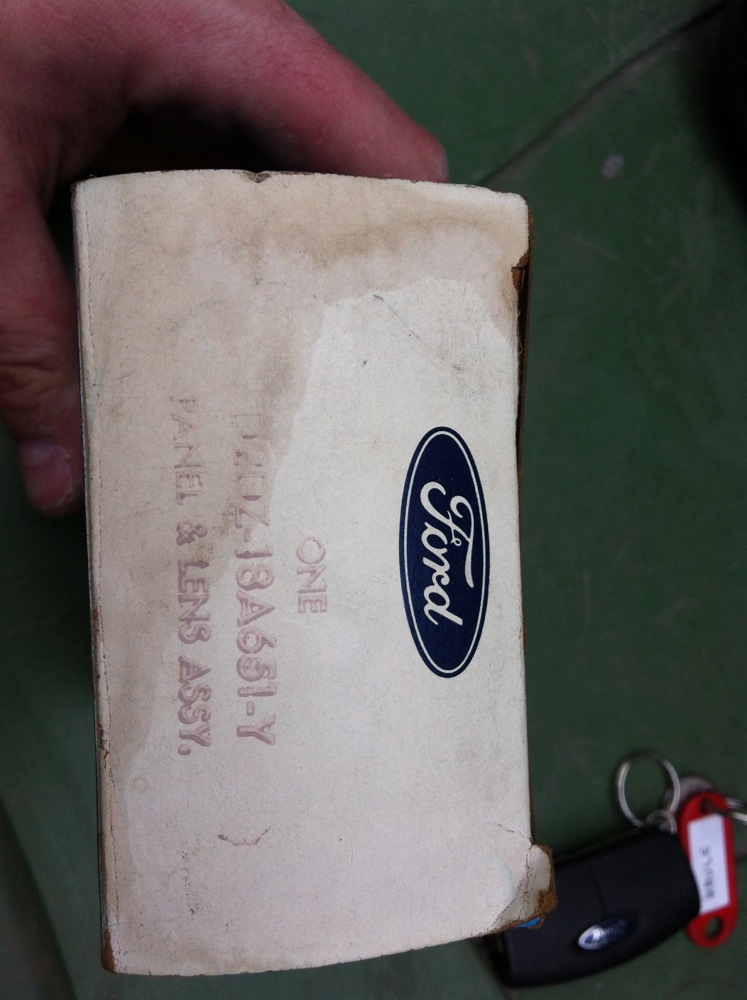

    my NOS bezel is the late one, D2DZ 18A651-Y:
    [​IMG]
    [​IMG]
    [​IMG]

    the hole in my controls is from the ugly screw through the bezel. it's also in the wrong location for the fifth push pin on the late bezel. plus i doubt i can get the late bezel to sit flush on the controls, as there's the blue lens which would keep it raised.

    one option would be to butcher up the heater controls. what i would prefer would be a late control panel. anyone have a picture so i can compare - and a spare i can buy?

  5. mrmalina99

    mrmalina99 Member

    Joined:
    Oct 20, 2010
    Messages:
    751
    Likes Received:
    23
    Trophy Points:
    66
    Location:
    Warner Robins, GA
    Vehicle:
    1973 Maverick
    Mine has 4 small screw holes but some of them have 1 or none?

  6. Craig Selvey

    Craig Selvey Indiana State Rep - MCCI

    Joined:
    Mar 9, 2002
    Messages:
    17,378
    Likes Received:
    819
    Trophy Points:
    753
    Location:
    Albany, Indiana
    Vehicle:
    1972 Maverick Grabber - Color: Orange Also, 1976 Ford Maverick 4-door, 1977 Mercury Comet 2-door. Daily driver: 2002 Ford Focus SE Station Wagon

    All the heater bezels came with NO screws.

  7. tody

    tody Member Supporting Member

    Joined:
    Apr 12, 2008
    Messages:
    1,740
    Likes Received:
    161
    Trophy Points:
    163
    Garage:
    1
    Location:
    cologne, germany
    Vehicle:
    72 comet gt, 67 club wagon, 65 mustang
    ok, here's a 73 control unit on ebay, i guess that's what it should look like:
    [​IMG]

    comes with cables, so the price and also shipping is rather steep.

    so does anyone have the 72 unit D2DZ 18531-A for sale?

  8. mrmalina99

    mrmalina99 Member

    Joined:
    Oct 20, 2010
    Messages:
    751
    Likes Received:
    23
    Trophy Points:
    66
    Location:
    Warner Robins, GA
    Vehicle:
    1973 Maverick
    Looks like original has snaps? Mine has screws where the snaps where.

  9. Craig Selvey

    Craig Selvey Indiana State Rep - MCCI

    Joined:
    Mar 9, 2002
    Messages:
    17,378
    Likes Received:
    819
    Trophy Points:
    753
    Location:
    Albany, Indiana
    Vehicle:
    1972 Maverick Grabber - Color: Orange Also, 1976 Ford Maverick 4-door, 1977 Mercury Comet 2-door. Daily driver: 2002 Ford Focus SE Station Wagon

    Acornridgeman has a thread on here that shows the back of the heater belzels. You can see the "pins" on the heater bezel. These pins seem to always snap off upon removal.

  10. BKelley

    BKelley Comet Enthusiast

    Joined:
    Apr 22, 2010
    Messages:
    1,158
    Likes Received:
    283
    Trophy Points:
    186
    Location:
    Stone Mountain, Ga
    Vehicle:
    "72" Comet GT


    Attached Files:

  11. sgaugeguy

    sgaugeguy Bob Kraus

    Joined:
    Oct 22, 2008
    Messages:
    832
    Likes Received:
    19
    Trophy Points:
    102
    Location:
    WILLIAMSTOWN NJ
    Vehicle:
    1971 MAVERICK 2Dr 44,000 AIR & VINYL TOP
    Here is a post with pics I did on this awhile back ...

    Heater panel differences between with and w/out defogger
    Well I finally got around to moving the switch from my NOS rear defogger from the center of the dash into the heater panel for a factory look. I moved the harness from the center to behind the heater panel and bolted in the NOS switch I got from Green Sales. After getting it all bolted up nice and tight I discovered that one of the pins located on the back of the panel was in a different spot from the original. The pin did not line up with the hole where the original pin went in. Since this was a hard to find NOS panel still in the box I did not want to just brake off the pin. I figured out where the new pin would wind up and simply drilled a new hole. As you can see in the pictures. The old pin was higher and off to the left slightly. The new pin was lower and more to the right. You can see in the pics the different pin locations. Just a heads up for anyone else doing this changeover. Nothing ever seems to go as planned with this car ! LOL :)
    Attached Thumbnails[​IMG] [​IMG] [​IMG] [​IMG] [​IMG]



    __________________
    [​IMG]

  12. sgaugeguy

    sgaugeguy Bob Kraus

    Joined:
    Oct 22, 2008
    Messages:
    832
    Likes Received:
    19
    Trophy Points:
    102
    Location:
    WILLIAMSTOWN NJ
    Vehicle:
    1971 MAVERICK 2Dr 44,000 AIR & VINYL TOP
    And now I know why the left side of the panel will not sit flush. The fan lens!

  13. BKelley

    BKelley Comet Enthusiast

    Joined:
    Apr 22, 2010
    Messages:
    1,158
    Likes Received:
    283
    Trophy Points:
    186
    Location:
    Stone Mountain, Ga
    Vehicle:
    "72" Comet GT
    Correct, the fan lens fits inside the square recess shown in the photo I posted. Thanks sgaugeguy for helping me to explain this, perhaps we've cleared up alot of questions and concerns regarding the heater control and bezel differences.

  14. RyanTravis

    RyanTravis Member

    Joined:
    May 17, 2018
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    14
    Garage:
    1
    Location:
    Chicago Illinois
    Vehicle:
    1995 Buick Century; 1972 Ford Maverick
    yes but that is for one that has A/C.

  15. William623

    William623 Member Supporting Member

    Joined:
    May 10, 2013
    Messages:
    1,097
    Likes Received:
    214
    Trophy Points:
    161
    Garage:
    1
    Location:
    Orlando
    Vehicle:
    1973 ford maverick grabber
    You realize this thread is from 2013 right...?
