Door alignment.

Discussion in 'Cosmetic' started by 7D2 Grabber, Oct 14, 2015.

  1. 71gold

    71gold Frank Cooper Supporting Member

    Joined:
    Apr 9, 2002
    Messages:
    26,538
    Likes Received:
    2,907
    Trophy Points:
    978
    Garage:
    1
    Location:
    MACON,GA.
    Vehicle:
    '73 Grabber

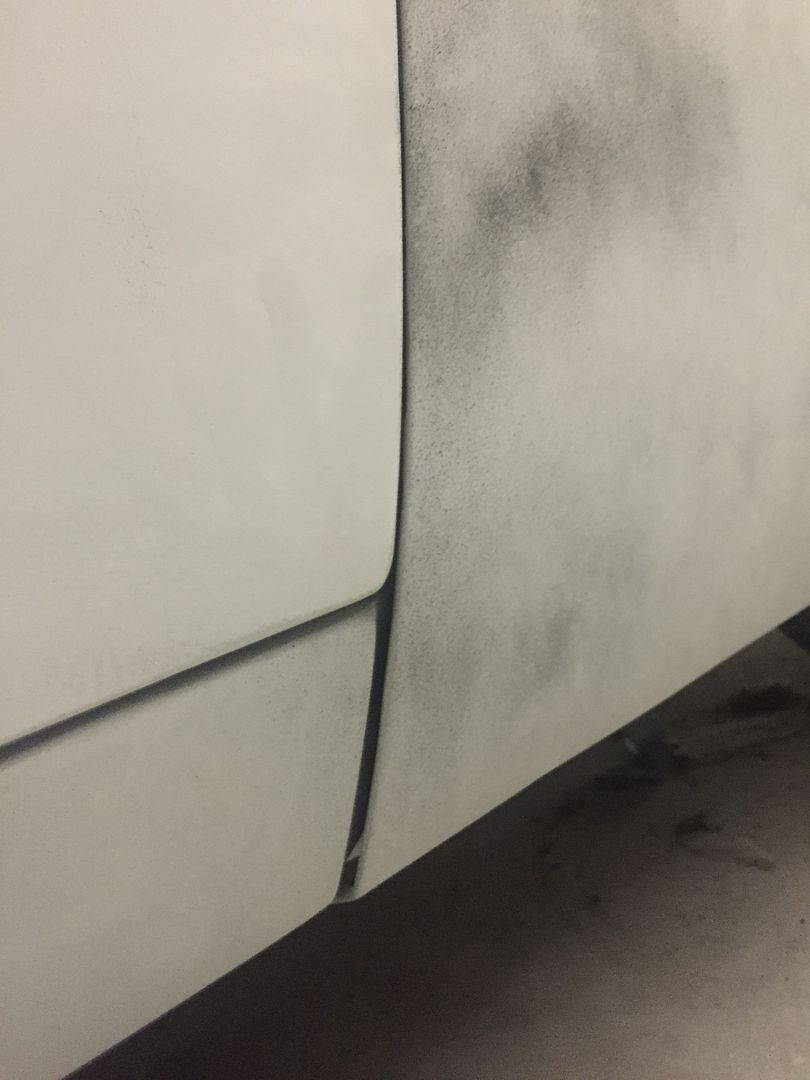

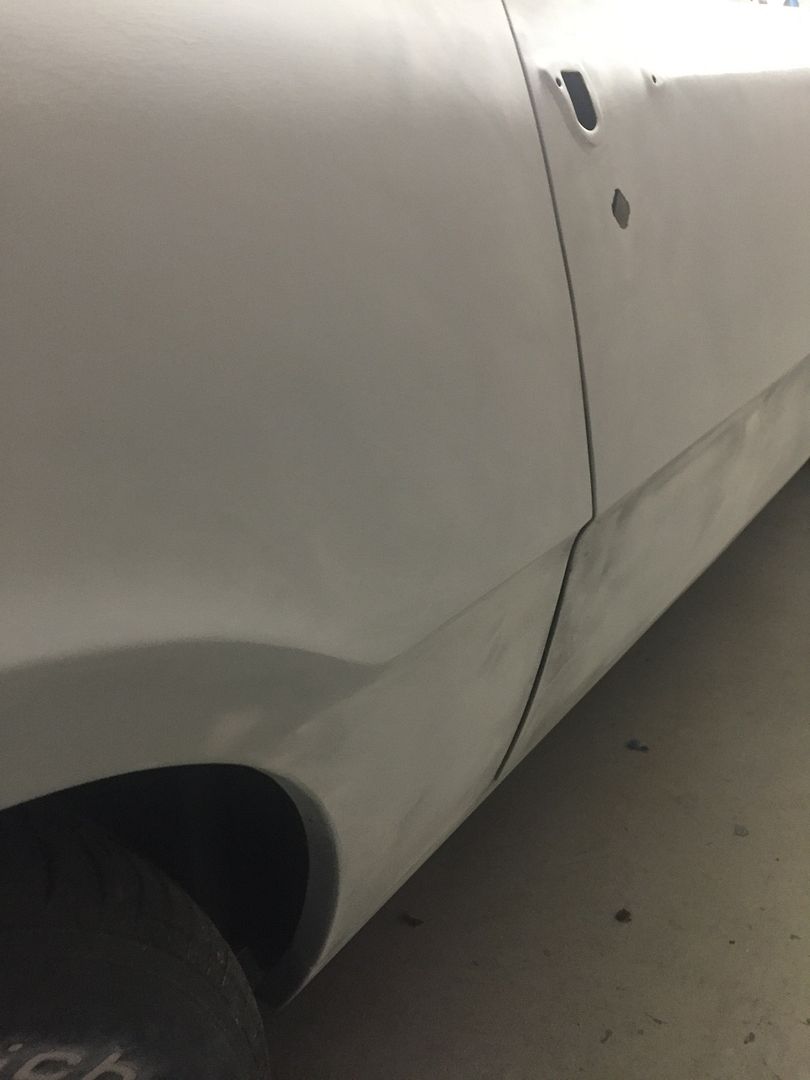

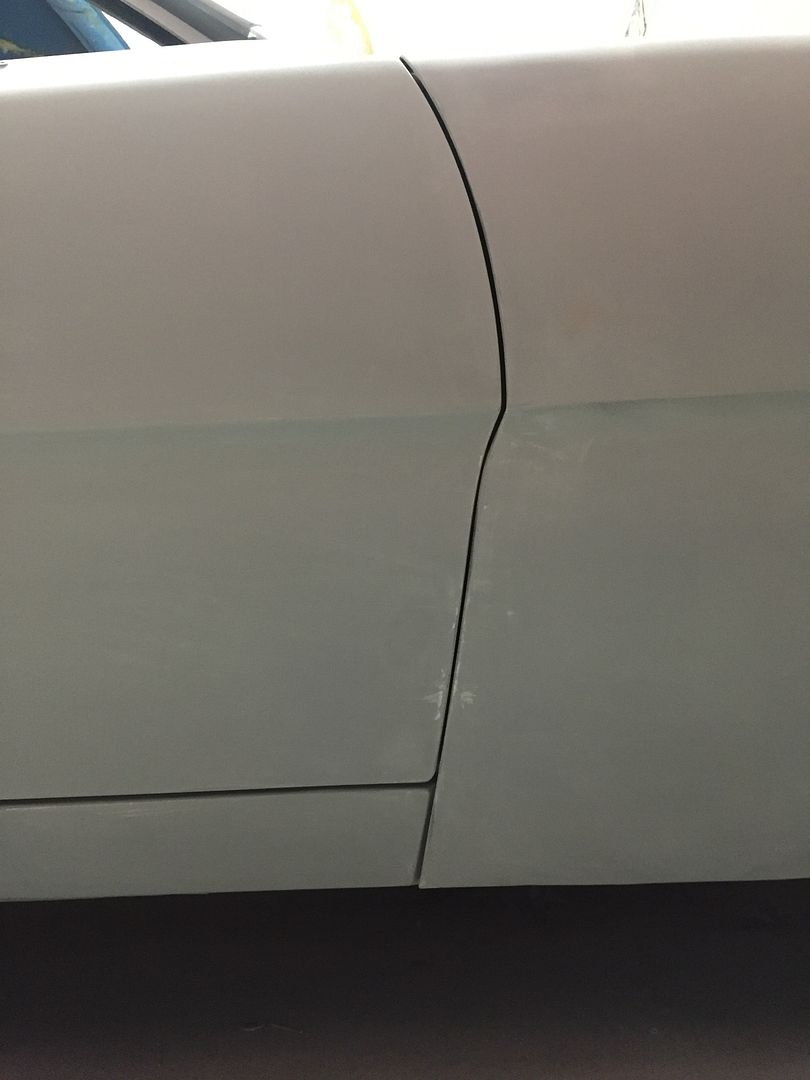

    pics??? I can see a door out of alignment from here...LOL

  2. 7D2 Grabber

    7D2 Grabber Member

    Joined:
    Apr 10, 2009
    Messages:
    999
    Likes Received:
    163
    Trophy Points:
    147
    Location:
    Northern CA, Bay Area
    Vehicle:
    1971 Comet GT, 1967 F100 short bed, 2008 Z06
    Lol

  3. 7D2 Grabber

    7D2 Grabber Member

    Joined:
    Apr 10, 2009
    Messages:
    999
    Likes Received:
    163
    Trophy Points:
    147
    Location:
    Northern CA, Bay Area
    Vehicle:
    1971 Comet GT, 1967 F100 short bed, 2008 Z06
  4. Mavman72

    Mavman72 Gone backwards but lookin' forward

    Joined:
    Apr 24, 2007
    Messages:
    6,759
    Likes Received:
    272
    Trophy Points:
    273
    Location:
    Buffalo N.Y.
    Vehicle:
    1972 Maverick 2 door.Original V-8 3 spd std shift.Also a 72 one owner Sprint sporting a 351 Windsor
    Pull the bottom of the door in at the lower hinge. You should be able to get it to move that 1/8th inch without upsetting the top. Then you can get the fender tighter to the rocker...If that doesnt work...Time to start thumpin and bumpin metal. Gotta say though, gaps are pretty tight, maybe a bit too tight but...Looks good. Is there weather stripping on that door still???

  5. 7D2 Grabber

    7D2 Grabber Member

    Joined:
    Apr 10, 2009
    Messages:
    999
    Likes Received:
    163
    Trophy Points:
    147
    Location:
    Northern CA, Bay Area
    Vehicle:
    1971 Comet GT, 1967 F100 short bed, 2008 Z06
    No weatherstripping. Bottom doesn't move inward anymore. I'm thinking of elongating the holes on the bottom for the hinge to try and get the little bit I need.

  6. Mavman72

    Mavman72 Gone backwards but lookin' forward

    Joined:
    Apr 24, 2007
    Messages:
    6,759
    Likes Received:
    272
    Trophy Points:
    273
    Location:
    Buffalo N.Y.
    Vehicle:
    1972 Maverick 2 door.Original V-8 3 spd std shift.Also a 72 one owner Sprint sporting a 351 Windsor
    You could do that or... Smack the door post (A Pillar) at the lower hinge and move the sheet metal in a bit.

  7. OLD GOOSE

    OLD GOOSE Member

    Joined:
    May 10, 2011
    Messages:
    656
    Likes Received:
    59
    Trophy Points:
    101
    Location:
    WV
    Vehicle:
    1972 ford maverick
    you could take a mig welder and weld down the side and fill and grind (a old school trick )or take some fiberglass filler smear it down the seam wait till it almost sets up then take a knife and run down the seam and sand off the excess( another old trick) use a hammer and a block of wood wrapped in a rag to pound it in or use a die grinder and widen the holes for more adjustment it is a Maverick it looks tight compared to Factory for show car gaps sometimes it takes all the tricks and shims and a little luck

  8. 71gold

    71gold Frank Cooper Supporting Member

    Joined:
    Apr 9, 2002
    Messages:
    26,538
    Likes Received:
    2,907
    Trophy Points:
    978
    Garage:
    1
    Location:
    MACON,GA.
    Vehicle:
    '73 Grabber
    should install weatherstripping first...:yup:

  9. OLD GOOSE

    OLD GOOSE Member

    Joined:
    May 10, 2011
    Messages:
    656
    Likes Received:
    59
    Trophy Points:
    101
    Location:
    WV
    Vehicle:
    1972 ford maverick
    i agree weatherstripping makes a big difference
