new gauges in dash advice

Discussion in 'General Maverick/Comet' started by satchelmcqueen, Oct 25, 2015.

  1. satchelmcqueen

    satchelmcqueen Member

    Joined:
    Jul 18, 2015
    Messages:
    647
    Likes Received:
    161
    Trophy Points:
    118
    Location:
    rome georgia
    Vehicle:
    1970 Maverick
    well im putting new gauges in my dash and am going to replace the speed/gas gauges with something else.

    my question is, the wiring harness that hooks into the back of the gauge panel...is it for the gauge lights only? it seems to be the case but wanted to be sure before i delete the circuit board on the back.

    without the gauge panel in the car all of my lights on the outside work and signals still function. i know ill lose my signal markers on the dash, but i can live with that if i have to.

  2. gregmaverick

    gregmaverick Member

    Joined:
    Sep 7, 2011
    Messages:
    429
    Likes Received:
    52
    Trophy Points:
    85
    Location:
    Salem, OR
    Vehicle:
    1970 maverick
    Fuel, idiot lights (oil & alternator) , turn signal, high beam.

    Note on the fuel: the fuel measurement system takes the 12V and converts to 5V on the dash panel. (That's what the regulator does).
    The fuel gauge is essentially a current meter (using ohm's law): Voltage/(Fuel tank float resistance) = current (What the gauge is measuring.

    After-market fuel gauges work the same, and some have accommodations to be able to adjust for many different fuel tank float resistances.

  3. satchelmcqueen

    satchelmcqueen Member

    Joined:
    Jul 18, 2015
    Messages:
    647
    Likes Received:
    161
    Trophy Points:
    118
    Location:
    rome georgia
    Vehicle:
    1970 Maverick
    ok cool. i think ill use the wiring harness to tie into the light circuit for my new gauges.

  4. RMiller

    RMiller My name is Rick

    Joined:
    Dec 12, 2009
    Messages:
    4,124
    Likes Received:
    1,154
    Trophy Points:
    523
    Garage:
    1
    Location:
    Kennewick, WA
    Vehicle:
    1971 Maverick Grabber
    Shorty likes this.
  5. mavgrab302

    mavgrab302 MCCI Florida State Rep

    Joined:
    Nov 24, 2007
    Messages:
    4,475
    Likes Received:
    139
    Trophy Points:
    147
    Location:
    Ocala,Florida
    Vehicle:
    71 Maverick Grabber
    I installed aftermarket gauges I used two green leds for turn and a blue one for high beams. Also use a 73/10 ford gas gauge and run a new wire to your sending unit. Gas gauge will not work with the factory wire. I left my gauge harness in and just tapprd into the harness for my turn and high beams...

  6. jtown77

    jtown77 Member

    Joined:
    May 2, 2013
    Messages:
    388
    Likes Received:
    46
    Trophy Points:
    123
    Location:
    Arizona
    Vehicle:
    71 Comet
    I went with making a dash insert.

    Shiraz_Maverick and Richard Kuss like this.
  7. jasonwthompson

    jasonwthompson Member

    Joined:
    Mar 25, 2012
    Messages:
    1,327
    Likes Received:
    450
    Trophy Points:
    196
    Location:
    Carrollton TX
    Vehicle:
    72 Comet

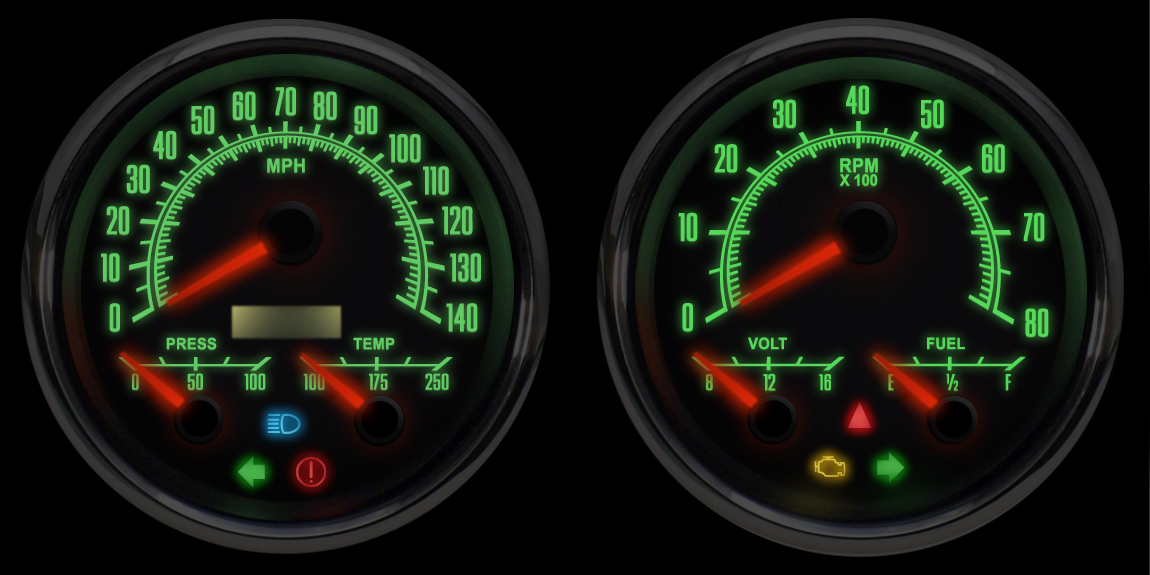

    If you can swallow the cost, these would be sweet. They are made by new vintage USA.
    [​IMG]

    BBMS18, Shiraz_Maverick, Kenn and 2 others like this.
  8. satchelmcqueen

    satchelmcqueen Member

    Joined:
    Jul 18, 2015
    Messages:
    647
    Likes Received:
    161
    Trophy Points:
    118
    Location:
    rome georgia
    Vehicle:
    1970 Maverick
    this is what i wound up doing. i am considering moving the gauges forward about another 1/4 - 1/2" and removing the clear plastic cover panel. itll not only be easier to see, but ill be able to mess with the dials on the gauges. im just worried about it looking to "dead spaced" if i do that. ill have to experiment before i do the final install.

    i LOVE the fact that i decided to keep the factory round design under the new fuel and pyrometer gauges. i wired in some turn signals to work in the original space and just put back in the insert to make it look like a beefed up stock type design.


    Attached Files:
