Nickmav70 Mav Project

Discussion in 'Maverick/Comet Projects' started by nickmav70, Dec 5, 2011.

  1. nickmav70

    nickmav70 Nick Maverick

    Joined:
    Oct 22, 2008
    Messages:
    347
    Likes Received:
    6
    Trophy Points:
    63
    Location:
    Dallas, GA
    Vehicle:
    1971 Ford Maverick

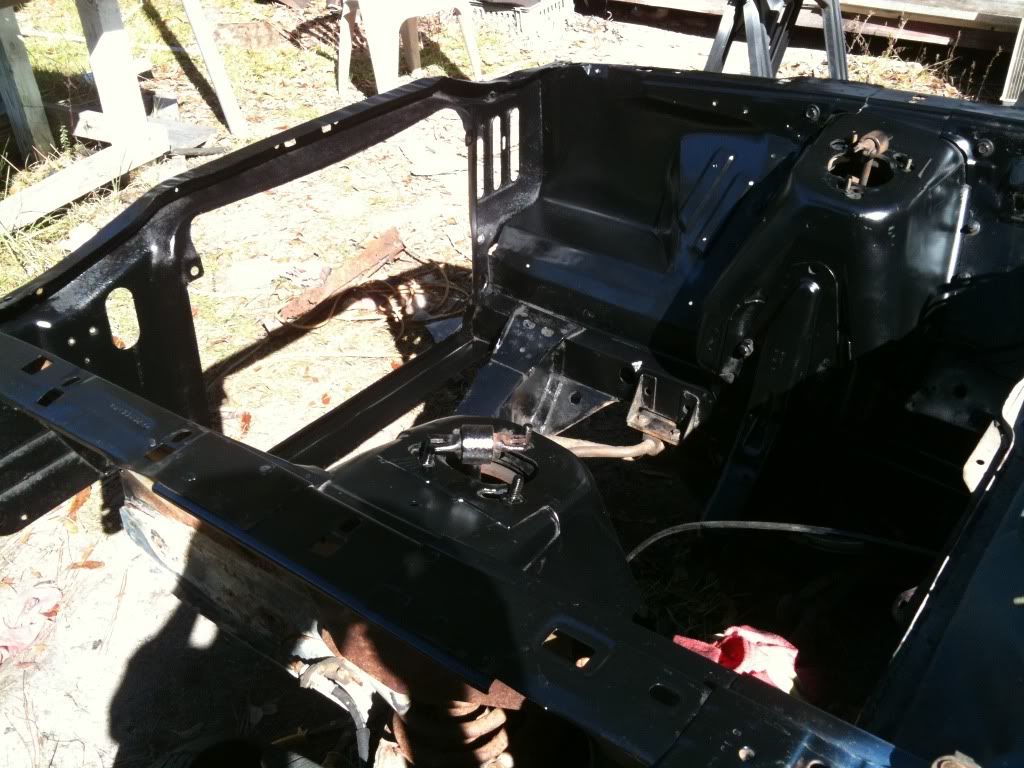

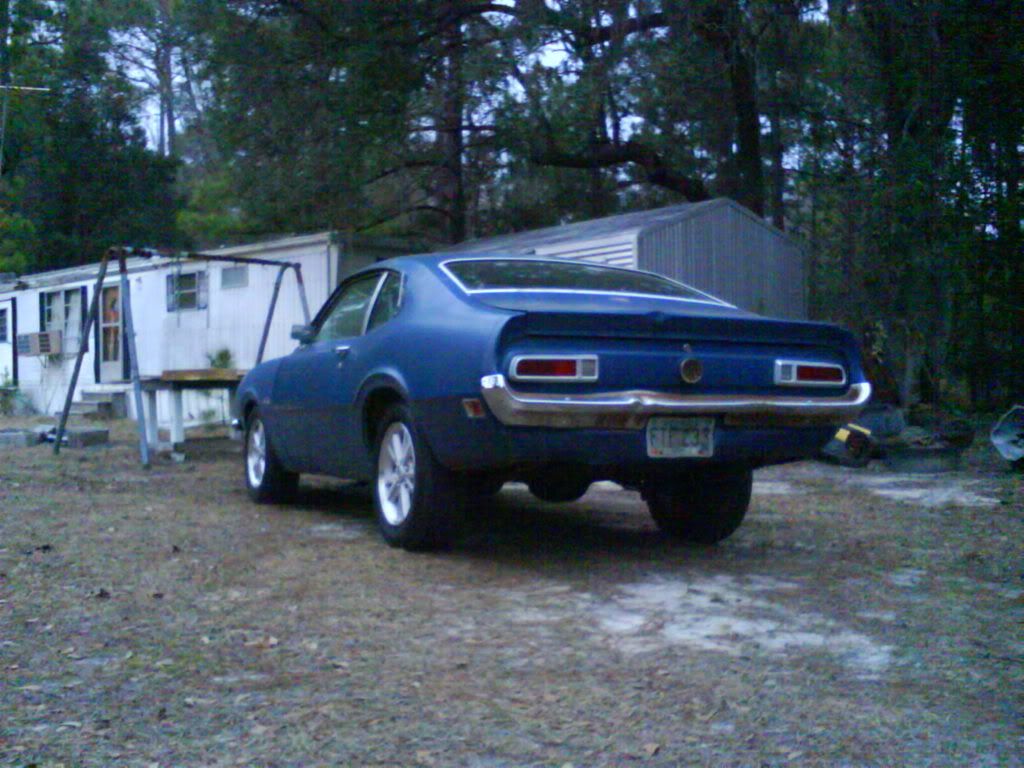

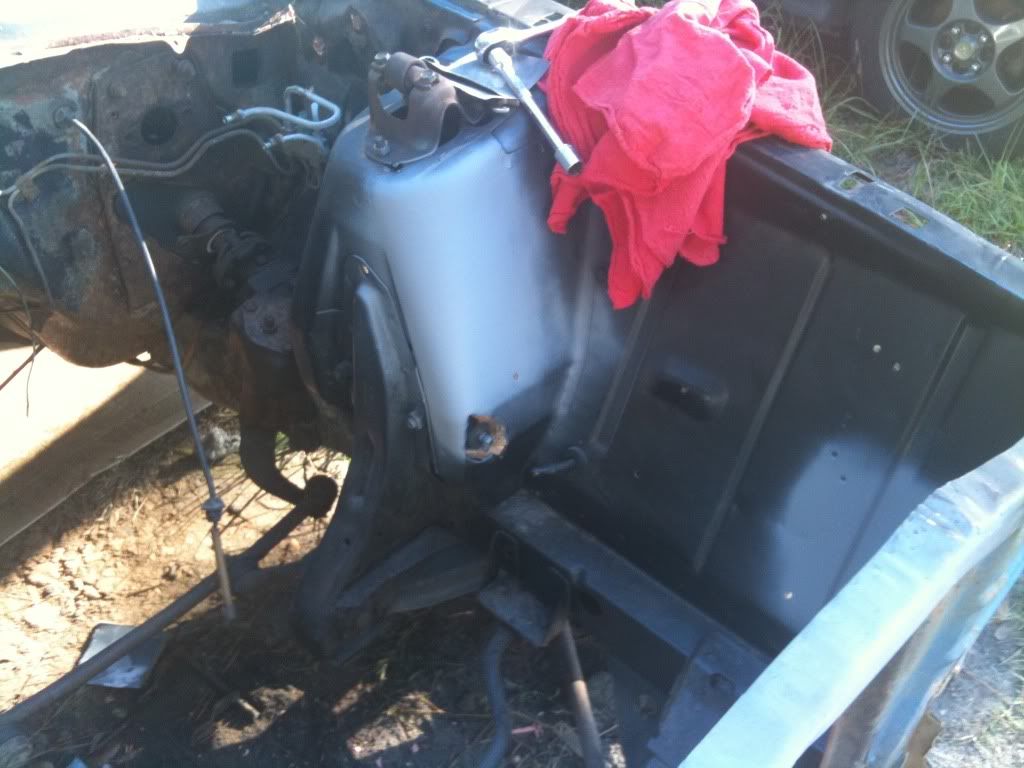

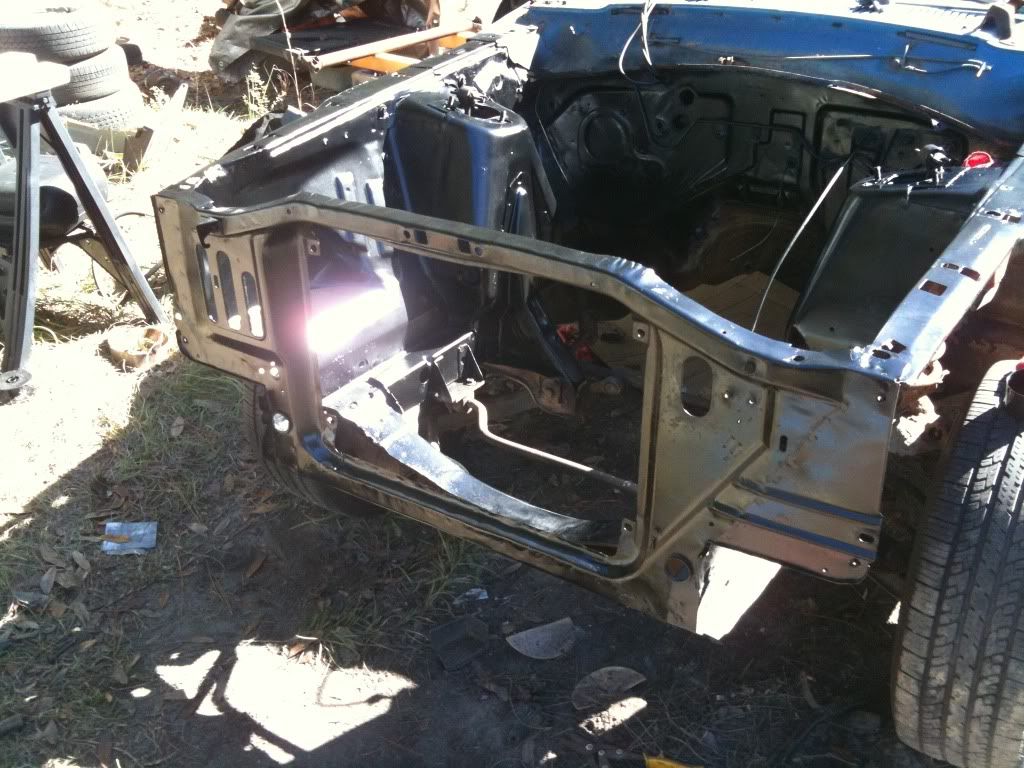

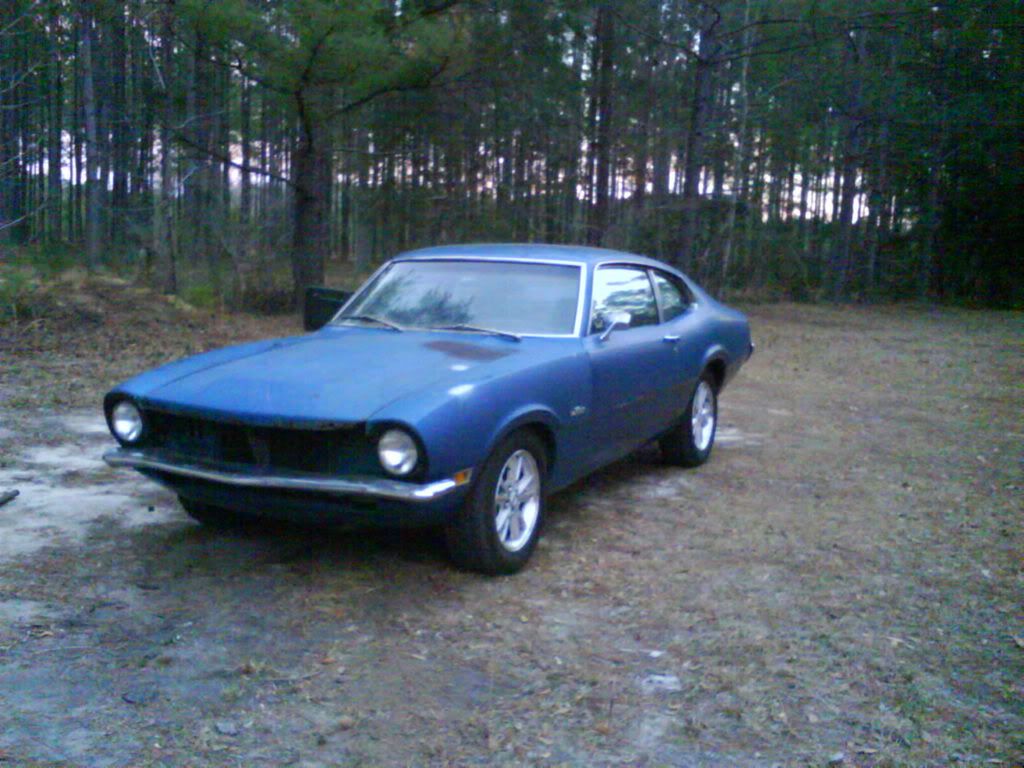

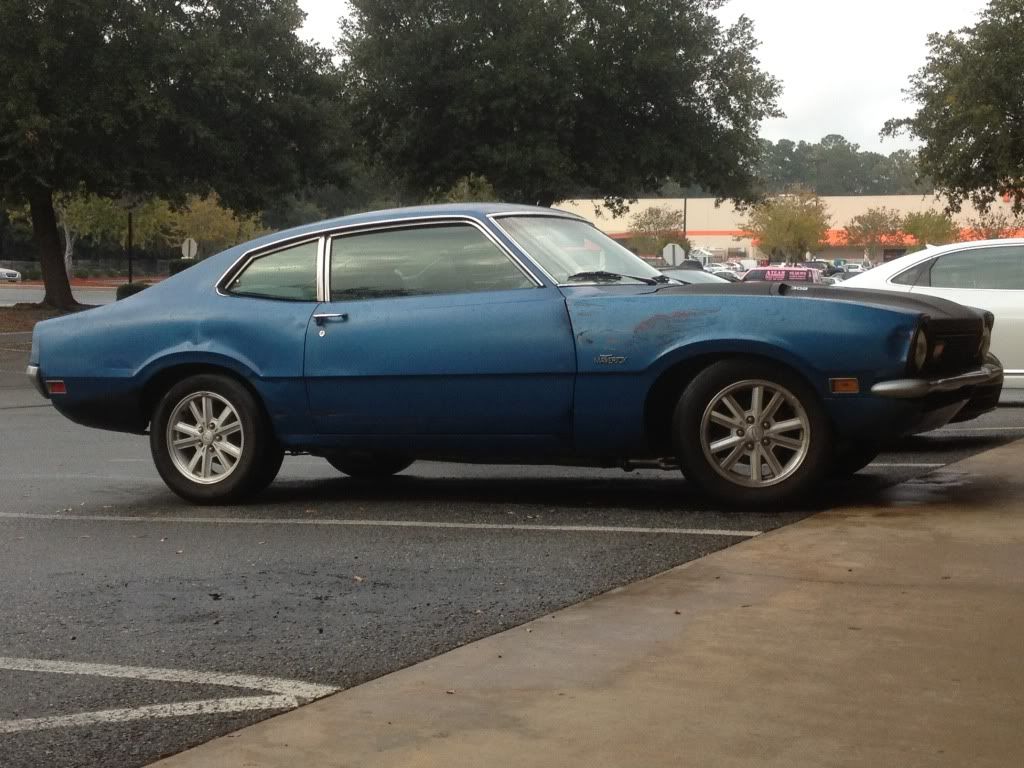

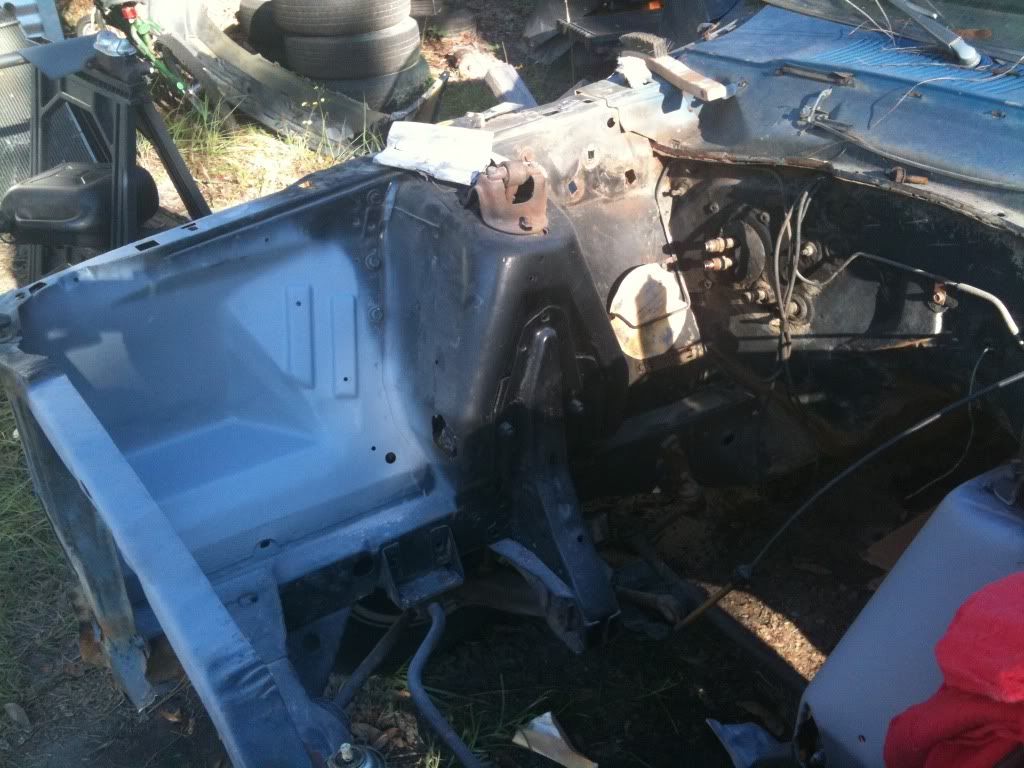

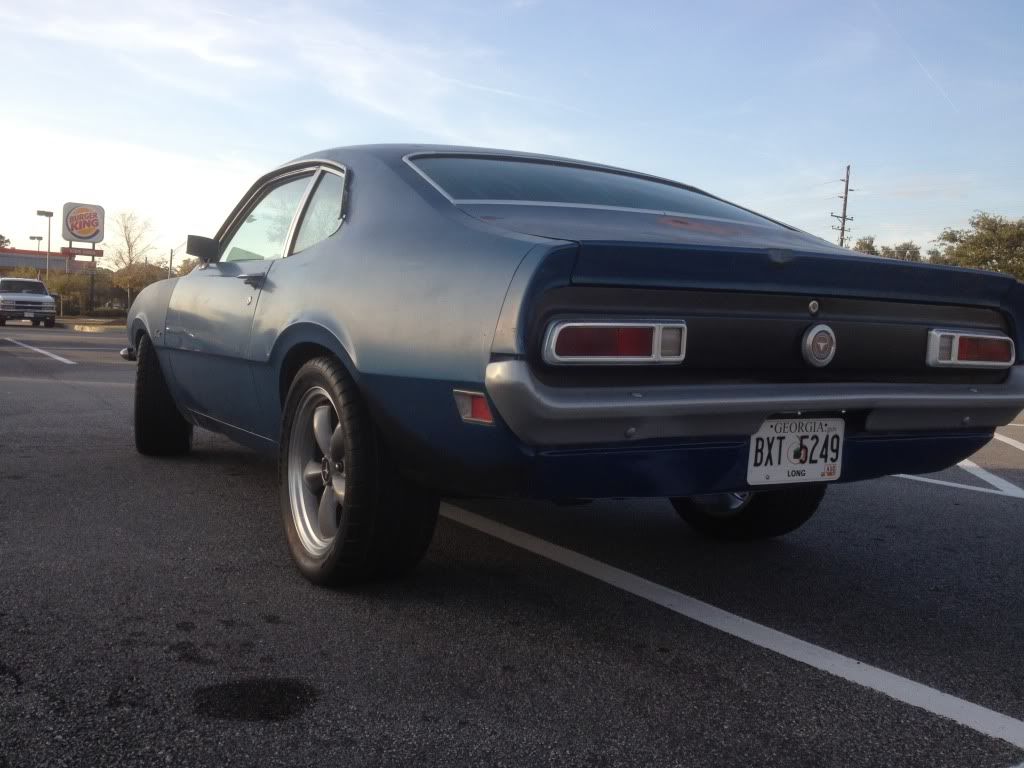

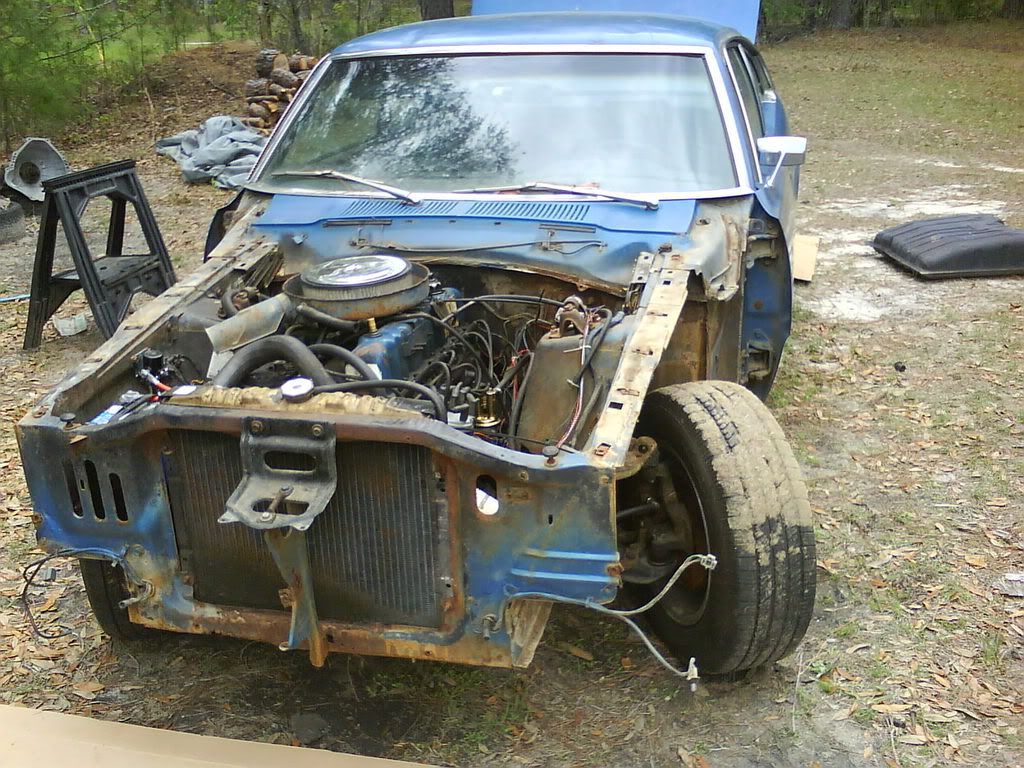

    This first first post is just a quick overview on what ive done

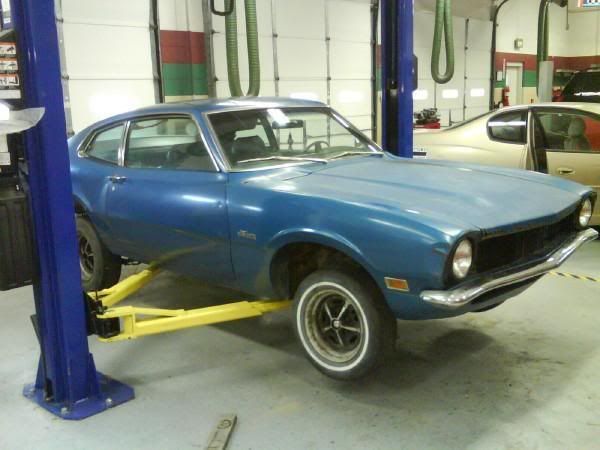

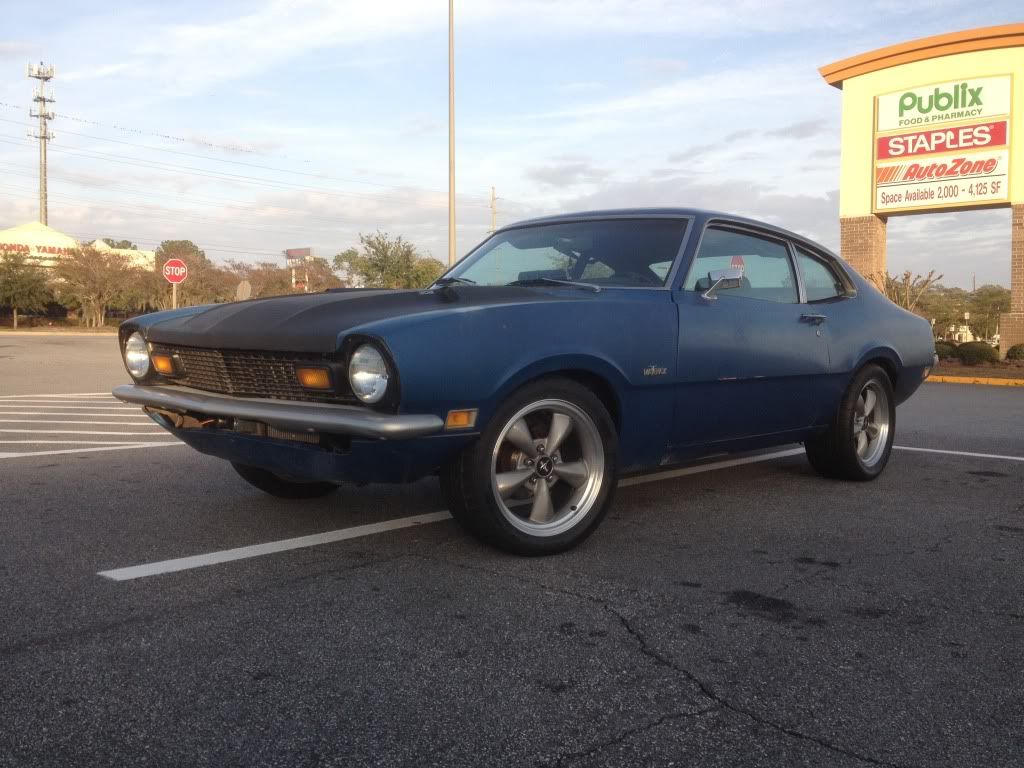

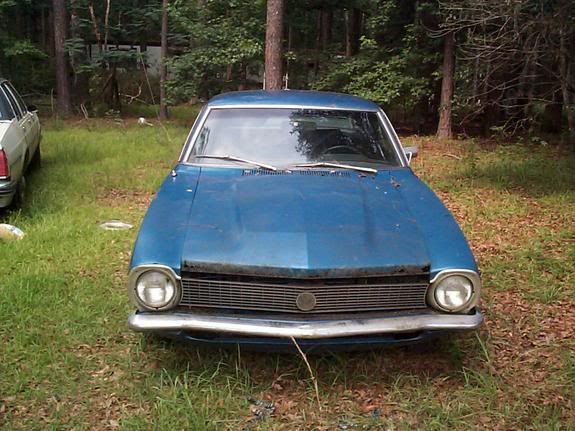

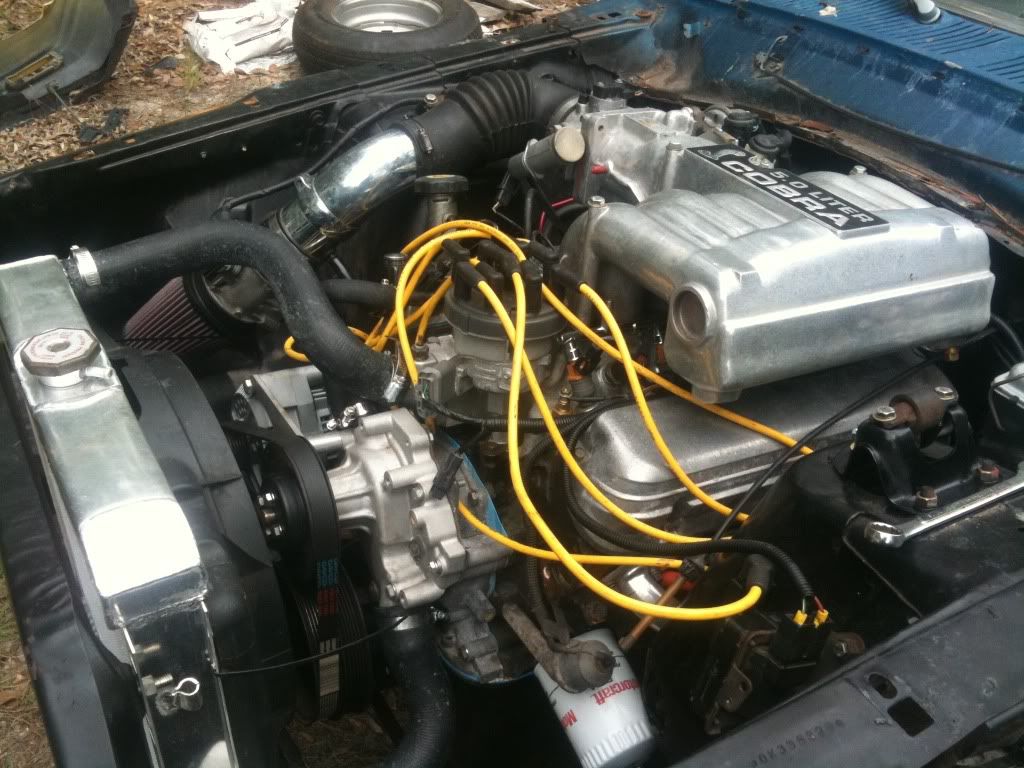

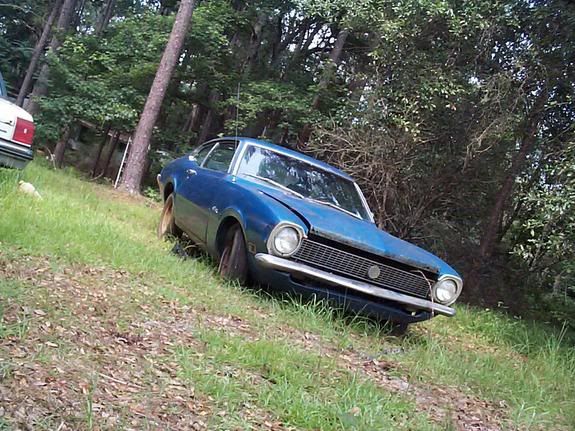

    The car was bone stock when i started on it... First thing i did was do the 5 lug conversion with disk brakes up front... next i changed the 200 6cyl which was completely locked up for a 250 i got out of a parts car just to get the car rolling... spun a rod bear in that and decided to go ahead and start on my v8 swap... First plan was to put a 76 block 302 with e7s and a comp cams 270h and a single plane intake and a c4... then... i changed my mind after i got that setup halfway done and decided to put a t5 in it which made my project even more drawn out... then my ADD kicked in again and i decided an efi 5.0 and t5 was the way to go... got one efi engine in and was putting the accessories on it when i broke a bolt in the block and was unable to get it back out... which meant putting another engine in (since it was easier than dealing with the other block.... final set up was a efi 302 with a mild cam, cobra intake, 65mm tb, 70 mm cobra maf, 24# injectors, ram hdx clutch, hydraulic actuated t5... drove the car for a little while with a 8 inch with 2.79 open rear gear... then changed to a 8.8 3.27 posi and disk brakes from a 94 gt... topped it off with bullitt wheels and 275 rear tires and 255 fronts and that is where im at right now

    hope everyone enjoys... plans are some kind of forced induction in the near future and lots of body work... will keep up dating

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. wardf

    wardf Ward Frahler

    Joined:
    Mar 9, 2002
    Messages:
    1,964
    Likes Received:
    26
    Trophy Points:
    146
    Location:
    Elizabethtown, Ky.
    Vehicle:
    70 maverick
    Nice job! Great start, keep us updated. Looks like you went through quite a few changes in no time.

  3. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,931
    Likes Received:
    215
    Trophy Points:
    347
    Location:
    Parts Unknown......
    Vehicle:
    3 Grabbers
    I like those Bullitt better than those other Mustang wheels. Fill us in a bit about the gauges. I'm always amazed by you guys down south working outside. :thumbs2:

  4. maverick75

    maverick75 Gotta Love Mavs!

    Joined:
    Mar 31, 2005
    Messages:
    9,014
    Likes Received:
    14
    Trophy Points:
    172
    Location:
    Riverside, California
    Vehicle:
    The mav is gone but i'm still here!
    The EFI 5.0L looks awesome!
    It's nice too see more guys going with EFI these days.

  5. nickmav70

    nickmav70 Nick Maverick

    Joined:
    Oct 22, 2008
    Messages:
    347
    Likes Received:
    6
    Trophy Points:
    63
    Location:
    Dallas, GA
    Vehicle:
    1971 Ford Maverick
    :biglaugh:dont let the single post fool you... ive been working on this car since 2005... only had it on the road for the past couple months... things have sped up here recently though... thanks though... im really happy with how the cars coming out

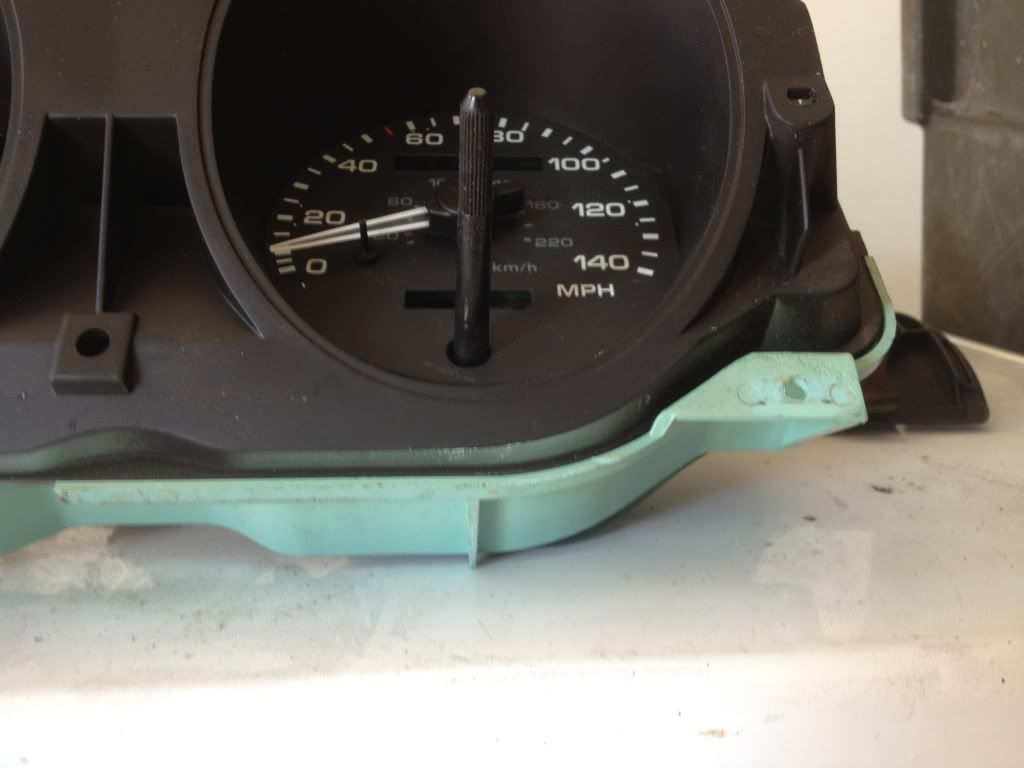

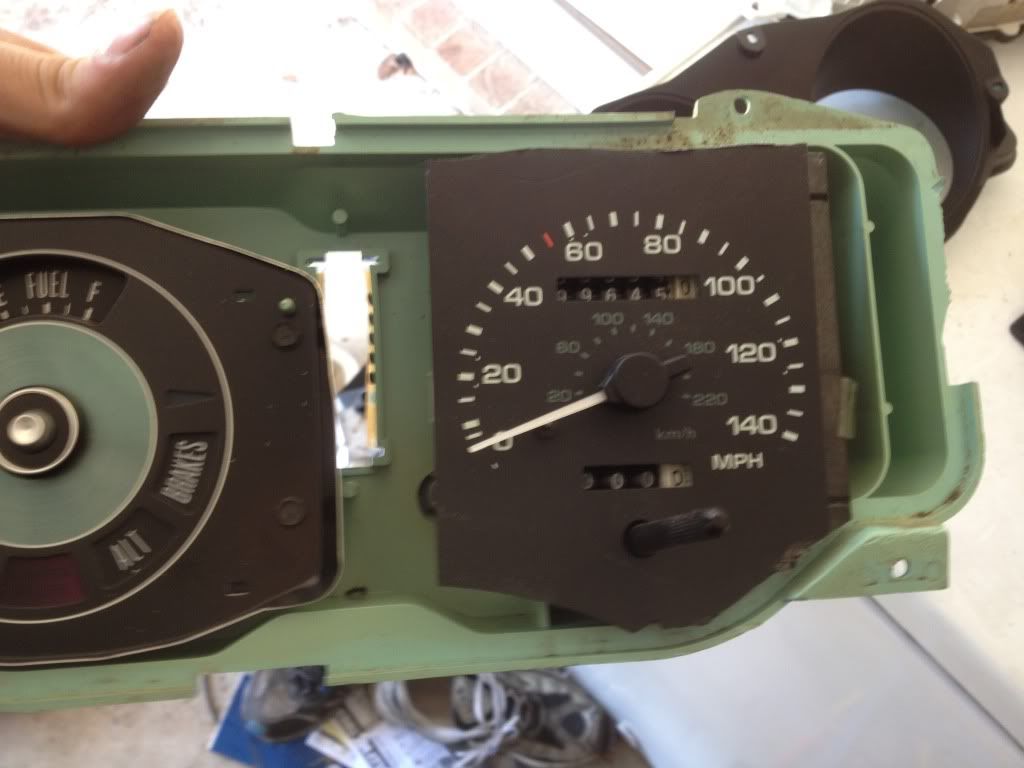

    all i did was cut the faces of a 140mph fox speedo and tach to fit in the mav cluster and trimmed the cluster of the mav on the left side to make room for the tach... it actually went together pretty easily


    Thanks... it took a while to do and a lot of wire nightmares but definitely worth it.... im no good at getting carbs to act right so this is easier for me :thumbs2:

  6. franktf

    franktf Member

    Joined:
    Nov 12, 2009
    Messages:
    4,119
    Likes Received:
    336
    Trophy Points:
    206
    Garage:
    1
    Location:
    Pinellas Park, FL
    Vehicle:
    72 Mercury Comet
    Nice project, I like the gauge swap..... :thumbs2:

  7. Corbin Johnson

    Corbin Johnson Member

    Joined:
    Mar 9, 2002
    Messages:
    3,726
    Likes Received:
    37
    Trophy Points:
    148
    Location:
    Sonoma County, California
    Vehicle:
    73 LDO, 72 Sprint, 70 Grabber.
    Sweet gauge cluster. Any additional pics/write up would be awesome!

  8. nickmav70

    nickmav70 Nick Maverick

    Joined:
    Oct 22, 2008
    Messages:
    347
    Likes Received:
    6
    Trophy Points:
    63
    Location:
    Dallas, GA
    Vehicle:
    1971 Ford Maverick

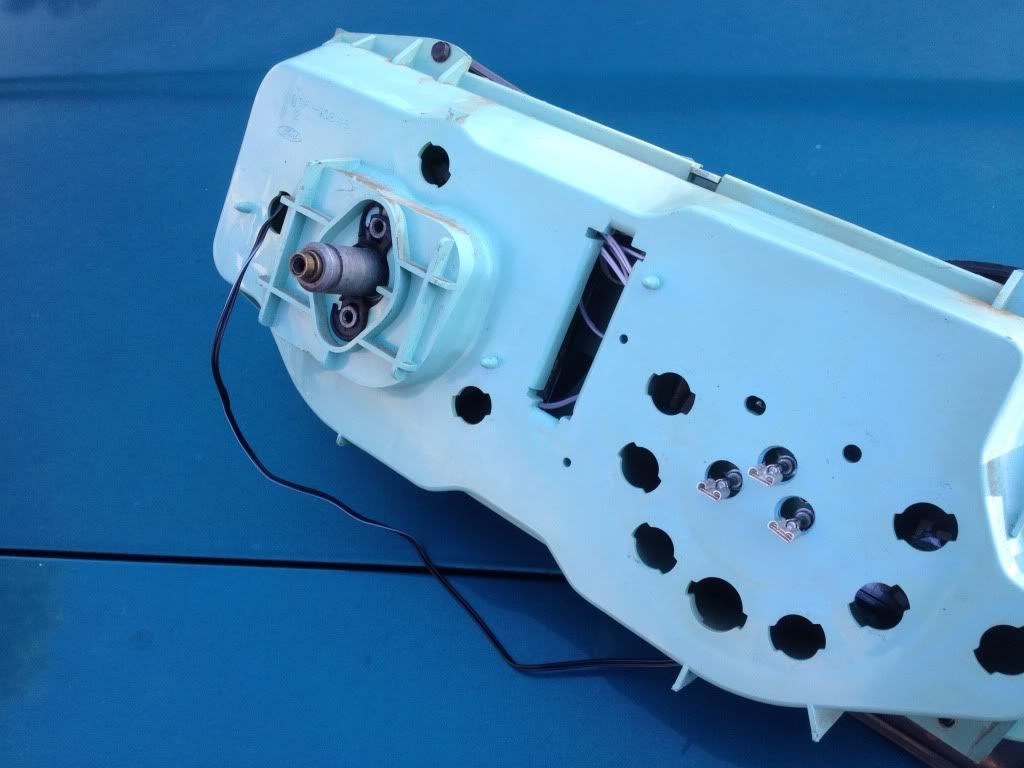

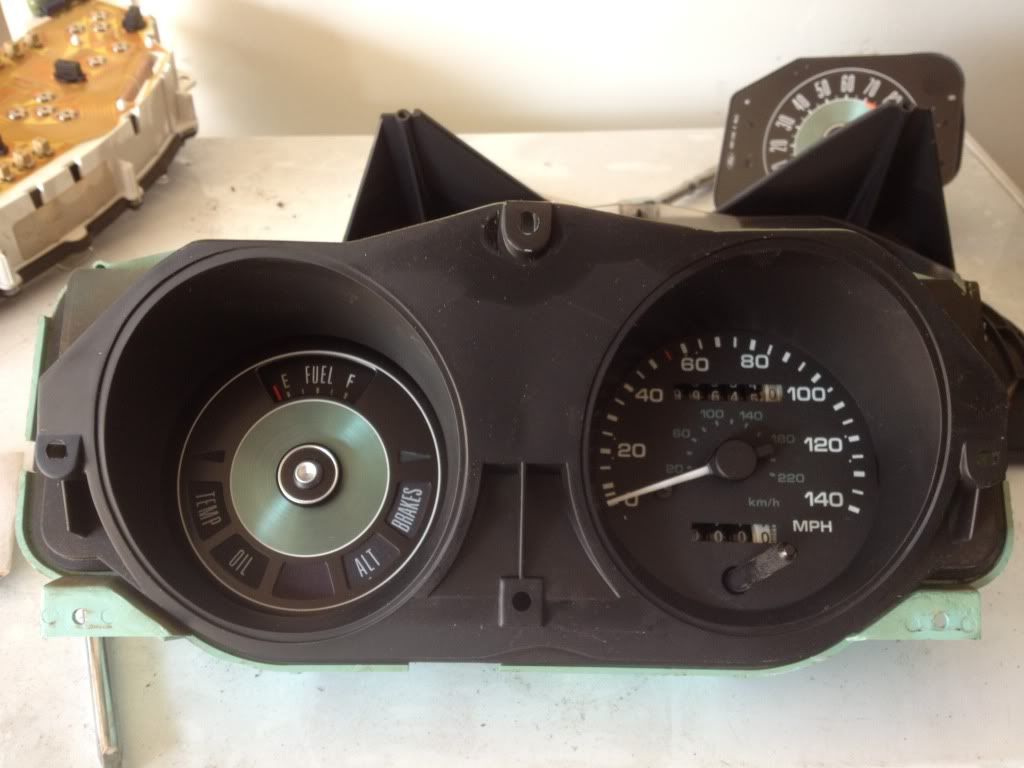

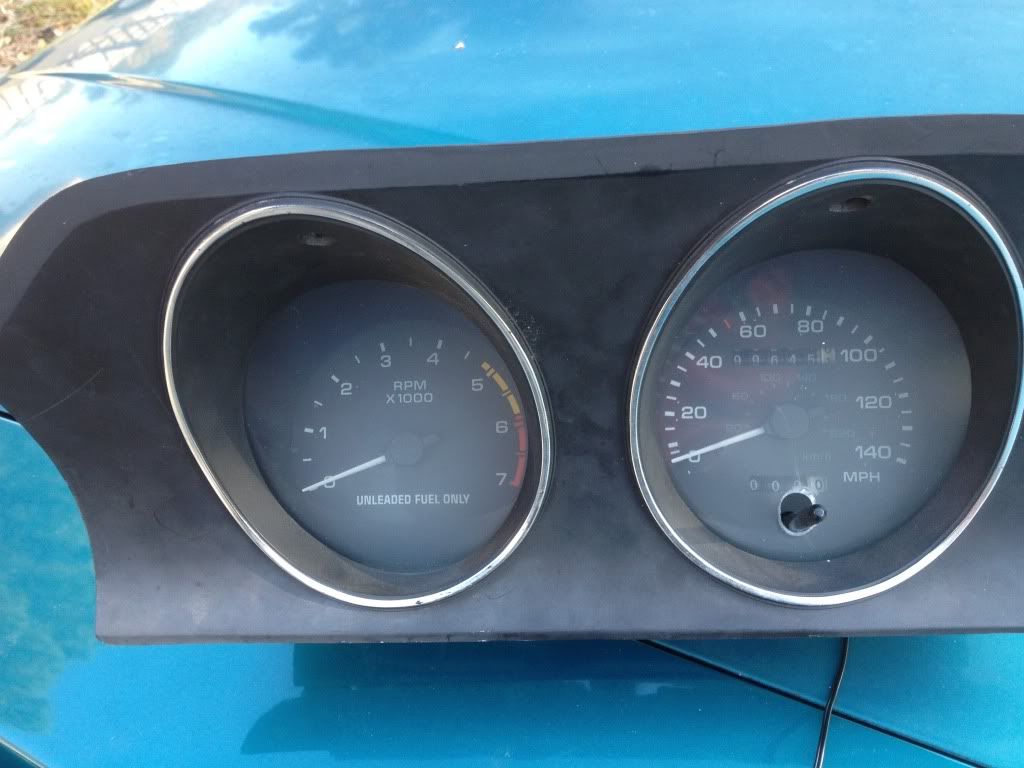

    here are some pics of my gauges...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  9. nickmav70

    nickmav70 Nick Maverick

    Joined:
    Oct 22, 2008
    Messages:
    347
    Likes Received:
    6
    Trophy Points:
    63
    Location:
    Dallas, GA
    Vehicle:
    1971 Ford Maverick
  10. starsky74

    starsky74 Technician

    Joined:
    Mar 9, 2007
    Messages:
    904
    Likes Received:
    3
    Trophy Points:
    107
    Location:
    Hackberry Louisiana
    Vehicle:
    73 four door, 74 starsky&hutch mav, a 93SHO, an 03 gt, and a 94 gt
    i dig that cluster man! way to think out of the box!

  11. strokermaverick

    strokermaverick Member

    Joined:
    May 14, 2010
    Messages:
    786
    Likes Received:
    0
    Trophy Points:
    100
    Location:
    CAPE CARTERET,N.C. (COASTAL BEACH AREA)
    Vehicle:
    '75 Maverick 2 door/ 420 c.i. stroker, converted to small bumpers ('73 Maverick 2 door 302 a/c p/s c-4 SOLD) '69.5 Maverick 2 door 200 c.i. c-4
    [​IMG]

    It's amazing, how something so simple, can come out so nice. How well do they light up? Way to go, on the guage cluster !:tiphat:

    Last edited: Dec 6, 2011
  12. nickmav70

    nickmav70 Nick Maverick

    Joined:
    Oct 22, 2008
    Messages:
    347
    Likes Received:
    6
    Trophy Points:
    63
    Location:
    Dallas, GA
    Vehicle:
    1971 Ford Maverick

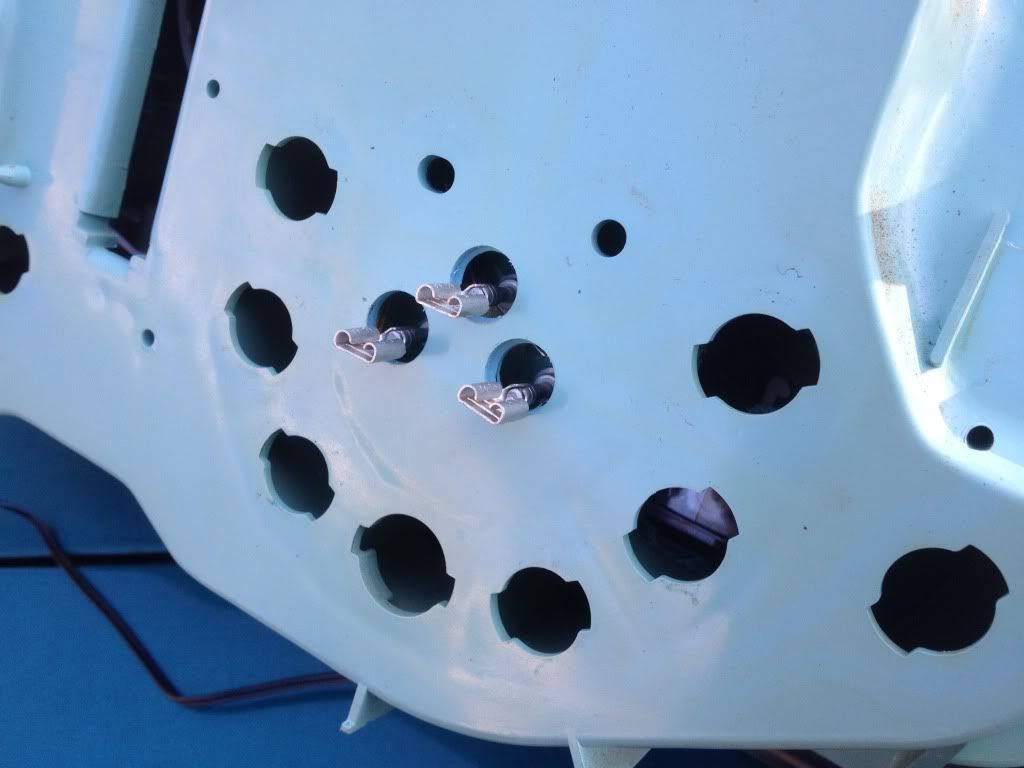

    Thanks... It lights up ok but it only has 4 LEDs in it... I will upgrade the lighting soon when I order the pig tails

  13. Corbin Johnson

    Corbin Johnson Member

    Joined:
    Mar 9, 2002
    Messages:
    3,726
    Likes Received:
    37
    Trophy Points:
    148
    Location:
    Sonoma County, California
    Vehicle:
    73 LDO, 72 Sprint, 70 Grabber.
    That's great. Thanks for showing the pics!

  14. John Holden

    John Holden Member

    Joined:
    Dec 13, 2006
    Messages:
    1,777
    Likes Received:
    20
    Trophy Points:
    95
    Location:
    NJ
    Yeah the gauges look great. :thumbs2: I have a question about the 8.8 rear though. What did you get it out of and how long was it compared to the stock maverick rear? I have often thought about doing this exact same swap but every time I asked questions about it I heard crickets.

  15. nickmav70

    nickmav70 Nick Maverick

    Joined:
    Oct 22, 2008
    Messages:
    347
    Likes Received:
    6
    Trophy Points:
    63
    Location:
    Dallas, GA
    Vehicle:
    1971 Ford Maverick

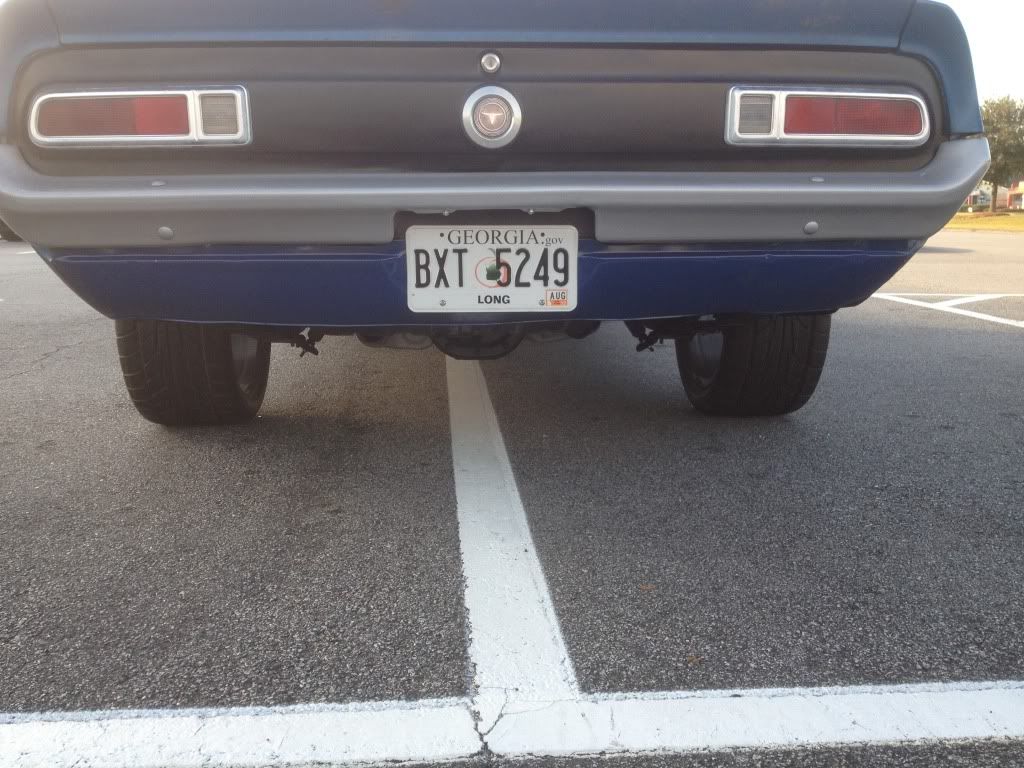

    It's out of a 94 gt with disk brakes... You will have to go with late model wheels because the Mav rear is around 56.5 and the mustang is around 61... I did have to roll my fender lips slightly but I'm running a 275 rear tire.... With a 245 you would be ok I think
