Relay Setup

Discussion in 'Technical' started by Doremusc, Aug 5, 2019.

  1. Doremusc

    Doremusc Member

    Joined:
    Jul 23, 2015
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    10
    Vehicle:
    1973 Ford Maverick
    So i'm planning to update the wiring under the hood to my 73 Maverick and had a question about relays. I'm planning on adding relays to the 1) Low Beams, 2) High Beams, 3) Electric Radiator Fan, 4) Audio. Are there any other electrics that I should wire into relay, i.e. ignition/coil, brake lights etc? The above 4 I listed seem to be the only ones I can think of that would mainly benefit and I want to only have to make one order for parts. Thanks for any help!

    Doremusc, Aug 5, 2019
    #1
  2. mojo

    mojo "Everett"- Senior Citizen Supporting Member

    Joined:
    Jul 20, 2009
    Messages:
    5,251
    Likes Received:
    818
    Trophy Points:
    498
    Garage:
    1
    Location:
    Chicago
    Vehicle:
    73 Comet GT-302 4bl
    I think you just about have all the things mentioned, all that's needed, cept if you run a ignition coil that needs 12 volts.

    mojo, Aug 5, 2019
    #2
  3. Doremusc

    Doremusc Member

    Joined:
    Jul 23, 2015
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    10
    Vehicle:
    1973 Ford Maverick
    I'm running one of the Ready to Run MSD Distributor with a MSD Blaster 2 coil, which is a 12v coil.

    Doremusc, Aug 5, 2019
    #3
  4. mojo

    mojo "Everett"- Senior Citizen Supporting Member

    Joined:
    Jul 20, 2009
    Messages:
    5,251
    Likes Received:
    818
    Trophy Points:
    498
    Garage:
    1
    Location:
    Chicago
    Vehicle:
    73 Comet GT-302 4bl
    Then you do need 12V to that coil. It wouldn't hurt to put in a relay, however, I don't know if it is really necessary to have a relay.

    mojo, Aug 5, 2019
    #4
  5. Acornridgeman

    Acornridgeman MCCI Wisconsin State Rep Moderator Supporting Member

    Joined:
    Apr 30, 2004
    Messages:
    6,495
    Likes Received:
    938
    Trophy Points:
    426
    Location:
    Wisconsin
    Vehicle:
    70 Maverick Grabber, 72 Maverick Grabber Restomod
    In my '72, I added the Mustang dual hi/lo horn set on a relay and trigger it with the horn wire.

    Acornridgeman, Aug 5, 2019
    #5
    jasonwthompson likes this.
  6. 71gold

    71gold Frank Cooper Supporting Member

    Joined:
    Apr 9, 2002
    Messages:
    26,464
    Likes Received:
    2,841
    Trophy Points:
    978
    Garage:
    1
    Location:
    MACON,GA.
    Vehicle:
    '73 Grabber
    you could put heater fan on a relay also.

    71gold, Aug 5, 2019
    #6
  7. rthomas771

    rthomas771 Member

    Joined:
    Jan 22, 2008
    Messages:
    8,010
    Likes Received:
    913
    Trophy Points:
    498
    Garage:
    1
    Location:
    GA
    Vehicle:
    '74 Maverick 250 5-Speed.'60 Falcon V8. '63.5 Falcon HT
    I got this relays from a mid 80's Dodge Caravan. The bracket keeps things together and only 2 holes to drill instead of 5.


    rthomas771, Aug 6, 2019
    #7
    BBMS18 likes this.
  8. Doremusc

    Doremusc Member

    Joined:
    Jul 23, 2015
    Messages:
    14
    Likes Received:
    2
    Trophy Points:
    10
    Vehicle:
    1973 Ford Maverick

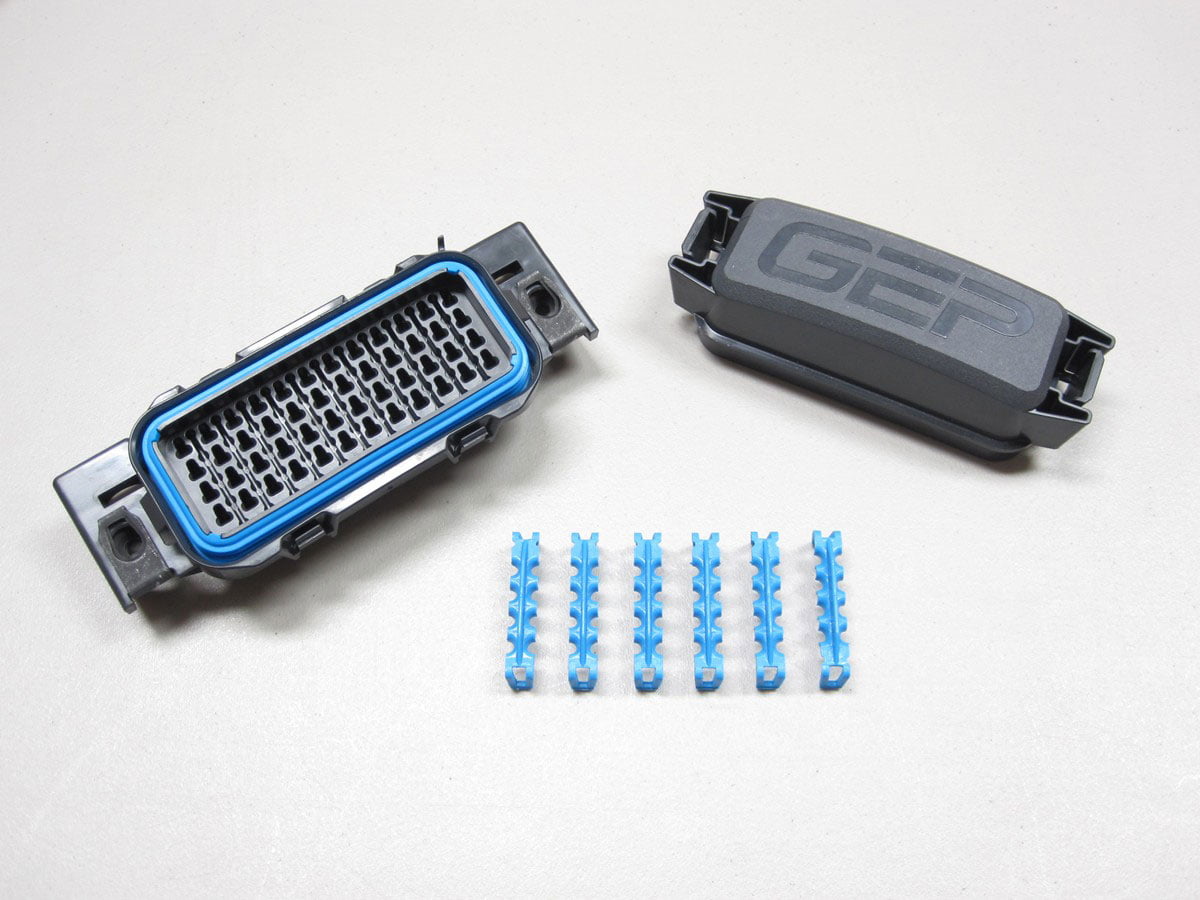

    Yeah, i'm planning to use one of these waterproof power distribution centers:
