Bucket seats

Discussion in 'Cosmetic' started by MaverickLVR, Feb 24, 2014.

  1. MaverickLVR

    MaverickLVR takes longer then you think...

    Joined:
    Feb 28, 2011
    Messages:
    873
    Likes Received:
    2
    Trophy Points:
    102
    Location:
    Grand Rapids, Michigan
    Vehicle:
    1976 Maverick Stallion, 1967 Olds Delmont convertible, 1999 Harley FatBoy
    Anyone have any recommendations about front bucket seat interchangeability with other vehicles or just other buckets you guys have tried that you find work well for y'all? Thanks!

  2. Streetdeacon

    Streetdeacon Streetdeacon

    Joined:
    Feb 16, 2010
    Messages:
    1,172
    Likes Received:
    2
    Trophy Points:
    120
    Location:
    Bellingham, WA
    Vehicle:
    1977 Maverick 2dr.
    If your car has a catiletic converter hump on the pasenger side, it takes a special set of tracks for that side. I was lucky to find a mav the same year as mine at a auction for the right price that had the factory reclining buckets in it. I had them reapolstered and they bolted right in.( see pictures in my images) Someone on the forum might have a set or know where there is a set. Good luck. :drive:

  3. MaverickLVR

    MaverickLVR takes longer then you think...

    Joined:
    Feb 28, 2011
    Messages:
    873
    Likes Received:
    2
    Trophy Points:
    102
    Location:
    Grand Rapids, Michigan
    Vehicle:
    1976 Maverick Stallion, 1967 Olds Delmont convertible, 1999 Harley FatBoy
    I have the tracks, just looking for some feedback on who has used what seats successfully....

  4. mikal2000

    mikal2000 Member

    Joined:
    Mar 22, 2009
    Messages:
    39
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Taylor, TX
    Vehicle:
    1971 Maverick Grabber, 2004 Ford Lightning (Daily Driver)
    Following this thread. I'm wondering what buckets from a modern car would look nice. Any suggestions?

  5. Red1972Grabber

    Red1972Grabber Hangtown Hot Rods-NorCal

    Joined:
    Oct 22, 2010
    Messages:
    2,159
    Likes Received:
    80
    Trophy Points:
    183
    Location:
    Northern California
    Vehicle:
    1972 Maverick Grabber, 2001 Mustang SVT Cobra Convertible, 1989 Toyota Pick-Up Truck(daily driver)
    If you have the seat tracks that is the most important part. Now just find some seats that are comfortable to you. My buckets are out of a 1990 Mustang and are very comfortable.

  6. CaptainComet

    CaptainComet Large Member

    Joined:
    Mar 18, 2007
    Messages:
    4,870
    Likes Received:
    350
    Trophy Points:
    398
    Location:
    Clearwater, FL
    Vehicle:
    72 Comet
    Ford used the same bolt pattern between the seat and the tracks for many applications up into the 1990s.

    The front to rear measurement will be 13 inches. The width is 14.

    The cat hump seat tracks get a little odd in that the passenger seat was made with the tunnel side track positioned higher than the outboard track. The outboard track needs to be raised to the same level to make "normal" seats work. Also you will need to move the raised bracket for the front position for the tunnel side track, basically moving it back, and riveting or welding it in a new position.

    I did a tech article on this ....
    http://mmb.maverick.to/showthread.php?t=80862

  7. fmc56

    fmc56 Member

    Joined:
    Dec 6, 2004
    Messages:
    178
    Likes Received:
    7
    Trophy Points:
    62
    Location:
    Warwick,RI
    Vehicle:
    1977 Maverick, 1932 Ford Victoria, 1965 Econoline pickup, 1963 Falcon Deluxe Club Wagon, 1963 Falcon Sprint, 1971 SC-360 Hornet, 1972 Gremlin X
    Mercury Monarch and Ford Granada bucket seats are the same as 76/77 Maverick. even the tracks are similar. The frame of the passenger seat has the step needed for the cat hump.I believe just the inner rear driver's side stud is to short. I have a set of Monarch seats in my 77

  8. junrai

    junrai Member

    Joined:
    Dec 26, 2011
    Messages:
    2,513
    Likes Received:
    184
    Trophy Points:
    173
    Location:
    rancho cordova ca
    Vehicle:
    1972 mercury comet 1972 comet gt
    my boy has had 80's mustang seats in his comet but that was a 74 so no cat hump he also has a set of racing seats installed in his 71 maverick

  9. AppMaverick

    AppMaverick Member

    Joined:
    Mar 29, 2009
    Messages:
    1,306
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Raleigh, NC
    Vehicle:
    1971 Maverick 2dr
    I did 94 Camaro seats... but only one hole lines up on their tracks and you have to do some fabricating for height


    Attached Files:

  10. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,667
    Likes Received:
    64
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks

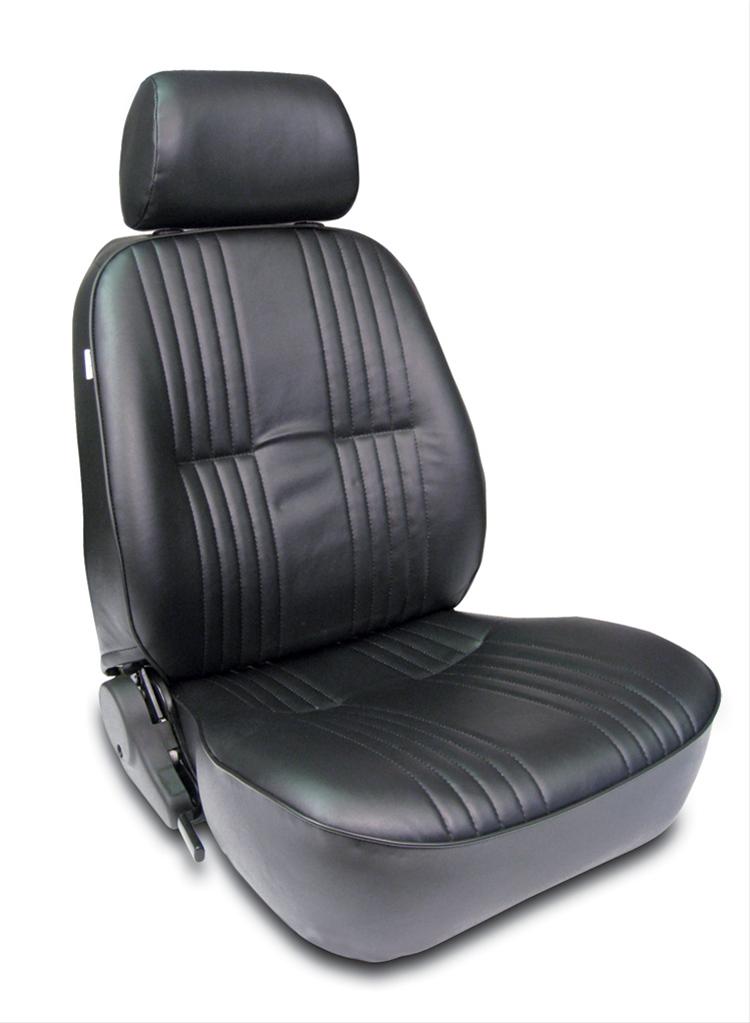

    I was thinking of buying new seats by procar or someone aftermarket like that.

    I would like to mount them a bit further back, to give me another 2-4" of legroom.

    Is that possible without reinventing the wheel?

    How hard is it to bolt these up to my seat brackets?

    [​IMG]

  11. bmcdaniel

    bmcdaniel Senile Member

    Joined:
    Jul 2, 2002
    Messages:
    6,422
    Likes Received:
    381
    Trophy Points:
    243
    Location:
    York. PA
    Vehicle:
    '70 Maverick Grabber
    Last edited: Mar 30, 2014
  12. scooper77515

    scooper77515 No current projects.

    Joined:
    Jun 30, 2004
    Messages:
    14,667
    Likes Received:
    64
    Trophy Points:
    233
    Location:
    Issaquah/Grand Coulee, WA
    Vehicle:
    Fresh out of Mavericks
    If I have to go rigging it up with steel stock and brackets, I would rather just leave the seats at stock location.

  13. bmcdaniel

    bmcdaniel Senile Member

    Joined:
    Jul 2, 2002
    Messages:
    6,422
    Likes Received:
    381
    Trophy Points:
    243
    Location:
    York. PA
    Vehicle:
    '70 Maverick Grabber
    You can attach the new steel anywhere along the seat track that you need to to mate up with the original holes in the floor.

  14. FastMav5

    FastMav5 Member

    Joined:
    Nov 9, 2007
    Messages:
    228
    Likes Received:
    0
    Trophy Points:
    35
    Location:
    Illinois
    Can't remember who posted it but I saved the pic cause it's what I'd like to do. These are Lincoln LS seats I believe. Front and rear. Maybe someone can chime in here...


    Attached Files:

  15. Dave B

    Dave B I like Mavericks!

    Joined:
    Mar 9, 2002
    Messages:
    16,924
    Likes Received:
    205
    Trophy Points:
    347
    Location:
    Parts Unknown......
    Vehicle:
    3 Grabbers
    I like those, they almost look like the ones in my wife's escape.
